Shop ARO

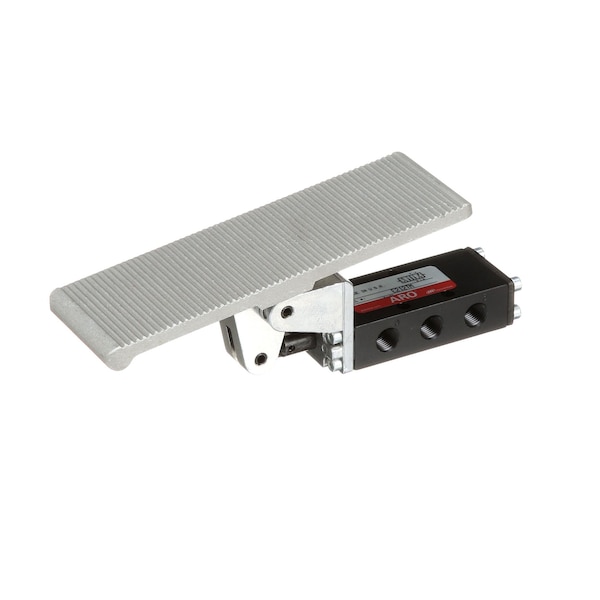

Manual Air Control Valve, Foot Pedal, Gray

  • Mfr # E712TS

  • Zoro # G4139817

product price:  $245.99
/ea
Free Shipping & Returns

Key Features

Body Material
Aluminum
Overall Length
10 1/2 in
Overall Height
4 5/8 in
Overall Width
2 3/4 in
Body Style
Side-Ported
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E712TS
Zoro #
G4139817
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
10 1/2 in
Overall Height
4 5/8 in
Overall Width
2 3/4 in
Valve Port Size
1/4 in
Exhaust Port Connection Size
1/4 in
Valve Port Connection Size
1/4 in

Details

Item
Manual Air Control Valve
Body Material
Aluminum
Body Style
Side-Ported
Valve Temp. Range
-10 Degrees to 180 Degrees F
Series
E
Seal Material
Buna-N
Valve Type
Spool
Number of Ports
5
Valve Actuator / Return
Treadle / Spring
Valve Max. Pressure Rating
150 psi
Valve Ways and Positions
4-Way/3-Position
Max. CFM - Valves
26 scfm
Connection
NPT
Return Action
Spring Return
Actuator Color
Gray
Number of Ways
Four-Way
Coefficient of Volume (Cv)
0.7
Valve Port Connection Type
NPT
Number of Positions
Three-Position
Fail Position
Open
Operating Pressure - Maximum
150 psi
Product Type
Manual Air Control Valve
Operating Pressure - Minimum
20 psi
Lubrication
Lubrication Required
Valve Action
Normally Open
Flow Rate - Maximum
26 scfm
Operating Temperature - Maximum
180 Degrees F
Center Position
Open
For Media
Air
Exhaust Port Connection Type
Threaded
Vacuum Rating
Not Vacuum Operable
Operating Temperature - Minimum
-10 Degrees F
Valve Port Connection Gender
Female
Actuator Type
Foot Pedal
Exhaust Port Connection Gender
Female

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Treadle / Spring, Max. CFM - Valves 26 scfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Center Position Open, Body Material Aluminum, Overall Length 10 1/2 in, Overall Height 4 5/8 in, Overall Width 2 3/4 in, Series E
