Shop ARO

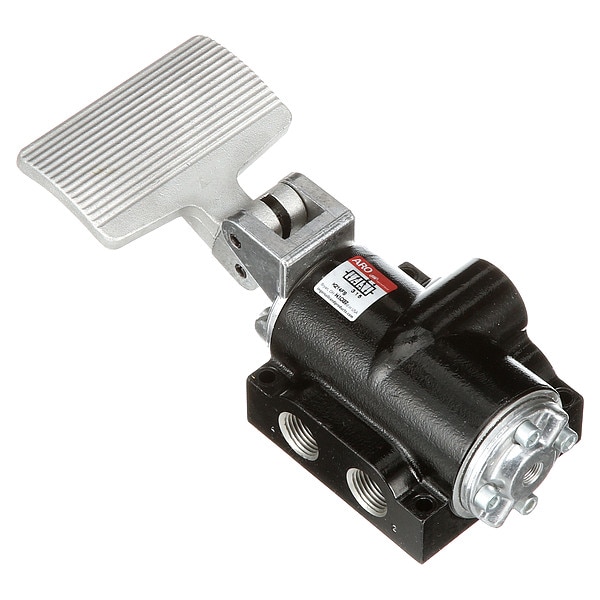

Manual Air Control Valve, Foot Pedal, Gray

  • Mfr # K214FS

  • Zoro # G4140912

product price:  $384.99
/ea
Free Shipping & Returns

Key Features

Valve Type
Spool
Body Material
Aluminum
Overall Height
4 in
Overall Length
9 5/8 in
Series
K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K214FS
Zoro #
G4140912
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
4 in
Overall Length
9 5/8 in
Valve Port Size
1/2 in
Valve Port Connection Size
1/2 in
Exhaust Port Connection Size
1/2 in

Details

Item
Manual Air Control Valve
Valve Type
Spool
Body Material
Aluminum
Series
K
Number of Ways
Four-Way
Connection
NPT
Valve Ways and Positions
4-Way/2-Position
Number of Positions
Two-Position
Valve Max. Pressure Rating
150 psi
Max. CFM - Valves
90 scfm
Valve Actuator / Return
Pedal / Spring
Valve Temp. Range
-10 Degrees to 180 Degrees F
Product Type
Manual Air Control Valve
Coefficient of Volume (Cv)
2.57
Seal Material
Buna-N
Valve Port Connection Gender
Female
Body Style
Side-Ported
Valve Port Connection Type
NPT
Return Action
Spring Return
Flow Rate - Maximum
90 scfm
Spool Material
Aluminum
Operating Temperature - Maximum
180 Degrees F
Operating Pressure - Minimum
0 psi
Operating Pressure - Maximum
150 psi
Exhaust Port Connection Gender
Female
Exhaust Port Connection Type
Threaded
Number of Ports
5
Valve Action
Normally Open
Lubrication
Lubrication Required
Actuator Type
Foot Pedal
Actuator Color
Gray
Fail Position
Open
Vacuum Rating
Not Vacuum Operable
For Media
Air
Operating Temperature - Minimum
-10 Degrees F

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 1/2 in, Connection NPT, Valve Actuator / Return Pedal / Spring, Max. CFM - Valves 90 scfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Center Position Not Applicable, Body Material Aluminum, Overall Length 9 5/8 in, Overall Height 4 in, Series K
