Shop ARO

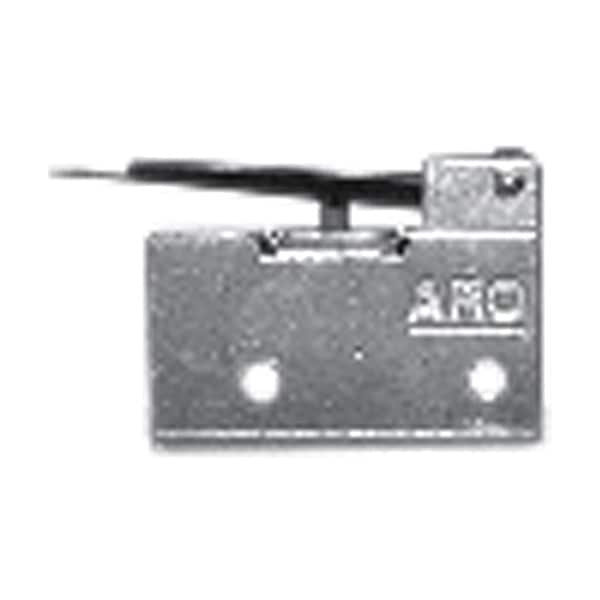

Manual Air Control Valve, Lever, Black

  • Mfr # 200-C

  • Zoro # G910769179

product price:  $43.69
/ea

Key Features

Series
200
Number of Ways
Three-Way
Number of Positions
Two-Position
Overall Height
1 3/16 in
Overall Length
1 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
200-C
Zoro #
G910769179
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
1 3/16 in
Overall Length
1 3/4 in
Overall Width
11/16 in
Valve Port Size
1/8 in
Exhaust Port Connection Size
1/8 in
Valve Port Connection Size
1/8 in
Wire Rope Length
1 3/4 in

Details

Item
Manual Air Control Valve
Series
200
Number of Ways
Three-Way
Number of Positions
Two-Position
Application
Air Cylinders, Gates, Slides
Valve Actuator / Return
One-Way, Short Lever
Body Material
Die Cast Zinc
Max. CFM - Valves
7.5 scfm
Valve Max. Pressure Rating
150 psig
Valve Temp. Range
32 Degrees to 160 Degrees F
Valve Ways and Positions
2-Way
Connection
NPT
Valve Port Connection Type
NPT
Operating Temperature - Minimum
32 Degrees F
Vacuum Rating
Not Vacuum Operable
Actuation Force @ 125 psi
1.25 lb
Return Action
Spring Return
Product Type
Manual Air Control Valve
Actuator Type
Lever
Number of Ports
3
Force @ 50 psi
20 oz
Operating Pressure - Minimum
30 psi
Valve Port Connection Gender
Female
Exhaust Port Connection Type
Threaded
Valve Type
Spool
Exhaust Port Connection Gender
Female
Coefficient of Volume (Cv)
0.195
Operating Temperature - Maximum
160 Degrees F
Operating Pressure - Maximum
150 psi
Body Style
Inline
For Media
Air
Fail Position
Open/Closed
Flow Rate - Maximum
7.5 scfm
Actuator Color
Black
Valve Action
Normally Open/Normally Closed

Description

Manual Air Control Valve, Valve Ways and Positions 2-Way, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return One-Way, Short Lever, Max. CFM - Valves 7.5 scfm, Valve Max. Pressure Rating 150 psig, Valve Temp. Range 32 Degrees to 160 Degrees F, Center Position Not Applicable, Body Material Die Cast Zinc, Overall Length 1 3/4 in, Overall Height 1 3/16 in, Overall Width 11/16 in, Series 200
