Shop ARO

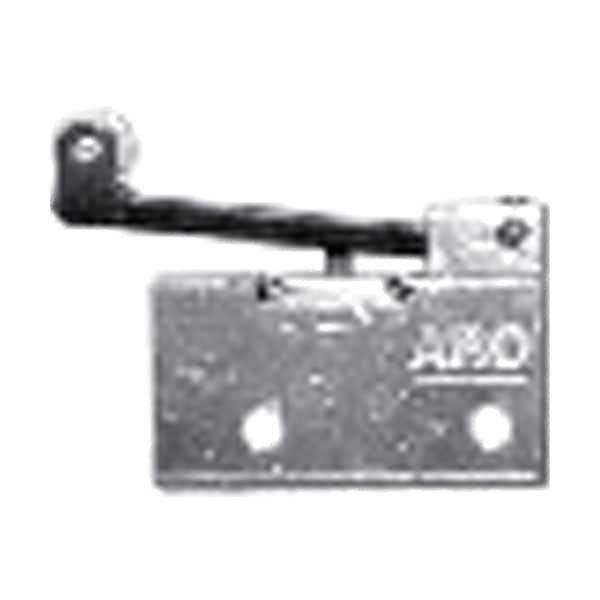

Manual Air Control Valve, Lever, Black

  • Mfr # 204-C
  • Zoro # G910769148
product price:
$
56.99
/ea

Key Features

Series
200
Number of Ways
Three-Way
Number of Positions
Two-Position
Overall Height
1 3/16 in
Overall Length
1 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
204-C
Zoro #
G910769148
UPC #
663023145976
Country of Origin
United States
Item
Manual Air Control Valve
Series
200
Number of Ways
Three-Way
Number of Positions
Two-Position
Max. CFM - Valves
7.5 scfm
Valve Ways and Positions
2-Way
Body Material
Die Cast Zinc
Connection
NPT
Valve Actuator / Return
One-Way, Short Lever
Valve Temp. Range
32 Degrees to 160 Degrees F
Valve Max. Pressure Rating
150 psig
Application
Air Cylinders, Gates, Slides
Vacuum Rating
Not Vacuum Operable
Exhaust Port Connection Gender
Female
Fail Position
Open/Closed
Operating Temperature - Maximum
160 Degrees F
Operating Pressure - Minimum
30 psi
Actuation Force @ 125 psi
2.13 lb
Return Action
Spring Return
Force @ 50 psi
34 oz
Body Style
Inline
Actuator Color
Black
Flow Rate - Maximum
7.5 scfm
Valve Port Connection Type
NPT
Product Type
Manual Air Control Valve
Valve Type
Spool
Operating Pressure - Maximum
150 psi
Valve Action
Normally Open/Normally Closed
Operating Temperature - Minimum
32 Degrees F
Valve Port Connection Gender
Female
Number of Ports
3
Exhaust Port Connection Type
Threaded
Coefficient of Volume (Cv)
0.195
For Media
Air
Actuator Type
Lever

Description

Manual Air Control Valve, Valve Ways and Positions 2-Way, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return One-Way, Short Lever, Max. CFM - Valves 7.5 scfm, Valve Max. Pressure Rating 150 psig, Valve Temp. Range 32 Degrees to 160 Degrees F, Center Position Not Applicable, Body Material Die Cast Zinc, Overall Length 1 3/4 in, Overall Height 1 3/16 in, Overall Width 11/16 in, Series 200
