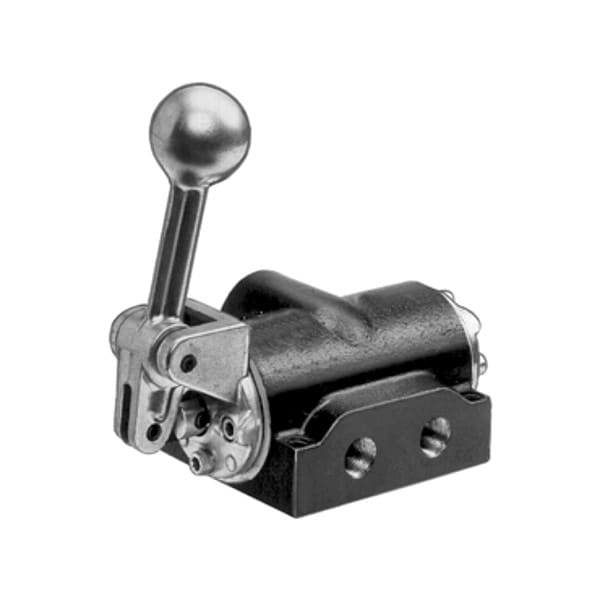

Manual Air Control Valve, Lever, Black

  • Mfr # K214LM

  • Zoro # G4140587

product price:  $347.99
/ea
Additional $120.00 delivery surcharge applies per item.
See details

Key Features

Valve Type
Spool
Body Material
Aluminum
Overall Height
6 7/8 in
Overall Length
6 7/16 in
Overall Width
3 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
K214LM
Zoro #
G4140587
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
6 7/8 in
Overall Length
6 7/16 in
Overall Width
3 1/2 in
Valve Port Size
1/2 in
Valve Port Connection Size
1/2 in
Exhaust Port Connection Size
1/2 in
Wire Rope Length
6 7/16 in

Details

Item
Manual Air Control Valve
Valve Type
Spool
Body Material
Aluminum
Series
K
Connection
NPT
Number of Ways
Four-Way
Valve Ways and Positions
4-Way/2-Position
Number of Positions
Two-Position
Valve Actuator / Return
Lever / Manual
Max. CFM - Valves
90 scfm
Valve Temp. Range
-10 Degrees to 180 Degrees F
Valve Max. Pressure Rating
150 psi
Operating Pressure - Maximum
150 psi
Valve Action
Normally Open
For Media
Air
Actuator Type
Lever
Lubrication
Lubrication Required
Return Action
Manual Return
Spool Material
Aluminum
Body Style
Side-Ported
Number of Ports
5
Valve Port Connection Type
NPT
Operating Temperature - Maximum
180 Degrees F
Valve Port Connection Gender
Female
Operating Pressure - Minimum
0 psi
Fail Position
Open/Closed
Coefficient of Volume (Cv)
2.57
Actuator Color
Black
Exhaust Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees F
Seal Material
Buna-N
Force @ 50 psi
1.5 lb
Exhaust Port Connection Type
Threaded
Actuation Force @ 125 psi
1.5 lb
Vacuum Rating
Not Vacuum Operable
Flow Rate - Maximum
90 scfm
Product Type
Manual Air Control Valve

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 1/2 in, Connection NPT, Valve Actuator / Return Lever / Manual, Max. CFM - Valves 90 scfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Center Position Not Applicable, Body Material Aluminum, Overall Length 6 7/16 in, Overall Height 6 7/8 in, Overall Width 3 1/2 in, Series K
