Aro

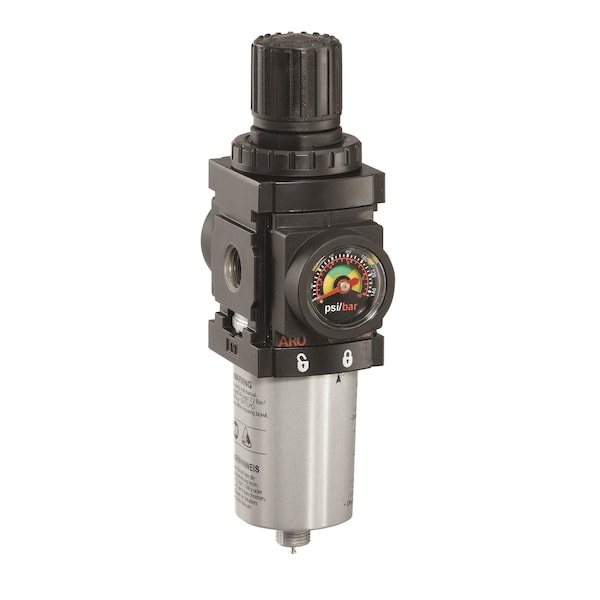

Piggyback, Air Inlet 1/4", NPT, 47 scfm

original price: $69.01
11% off
new price: $60.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Drain Type Manual
  • Overall Height 6 3/16 in
  • Overall Width 1 9/16 in
  • Filter Rating 5 micron
  • Standards ATEX, IRITS-1215-197
See all product information

Product Information

Dimensions

Overall Height 6 3/16 in
Overall Width 1 9/16 in
Air Outlet Size 1/4 in
Pressure Gauge Port Size 1/8 in
Overall Depth 2 15/16 in
Air Inlet Size 1/4 in

Details

Drain Type Manual
Filter Rating 5 micron
Item Piggyback
Standards ATEX, IRITS-1215-197
Air Inlet Type NPT
Series Series 1000
Seal Material Nitrile
Maximum Operating Pressure 140 psig
System Location Air Line
Filter Bowl Guard Material Nylon
Filter Bowl Capacity 0.4 oz
Body Material Aluminum
Pressure Gauge Included Yes
Pressure Drop 33 psi
Minimum Operating Temperature 23 Degrees F
Adjustment Mechanism Material Acetal
Maximum Operating Temperature 175 Degrees F
Air Outlet Type NPT
For Substance Type Air
Adjustment Mechanism Knob
Regulator Type Relieving
Filter Bowl Material Metal
Maximum Flow Rate 47 scfm
Adjustment Location Top
Drain Included Yes
Pressure Gauge Port Type NPT
For Fluid Type Compressed Air
Maximum Regulated Pressure 250 psi
Filter Type Coalescing
Minimum Operating Pressure 0 psig
Modular Connection Modular Connection

Description

Piggyback, Filter Bowl Material Metal, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 47 scfm, Filter Rating 5 micron, Filter Type Coalescing, Maximum Operating Pressure 140 psig, Drain Type Manual, Pressure Gauge Included Yes, Body Material Aluminum, Overall Width 1 9/16 in, Series Series 1000, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Acetal, Air Outlet Size 1/4 in, Air Outlet Type NPT, Drain Included Yes, Filter Bowl Capacity 0.4 oz
