  11. Pilot Air Control Valve, Bleed, 150 psi

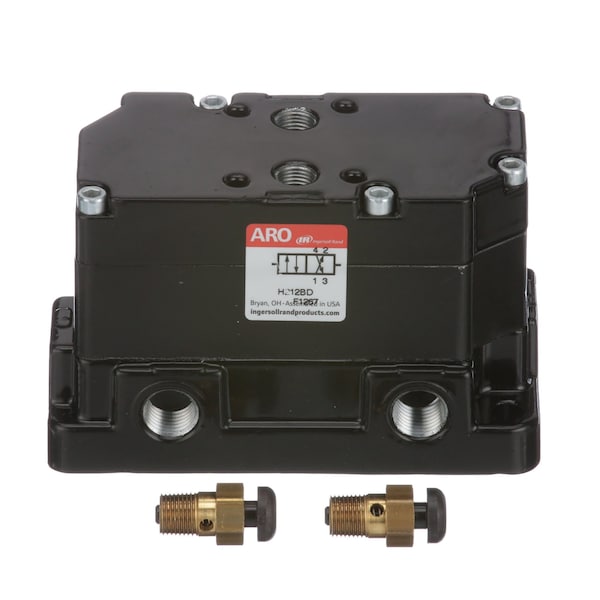

Aro Pilot Air Control Valve, Bleed, 150 psi H212BD - main

Pilot Air Control Valve, Bleed, 150 psi

  • Mfr # H212BD

  • Zoro # G4139442

product price: $693.99
/ea
Free Shipping & Returns

Key Features

Body Material
Die Cast Zinc
Valve Actuator / Return
Manual Bleed / Manual Bleed
Series
H
Pilot Pressure
1 psi
Max. CFM - Valves
55 scfm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H212BD
Zoro #
G4139442
UPC #
-
Country of Origin
United States

Dimensions

Valve Port Size
1/4 in
Valve Port Connection Size
1/4 in

Details

Item
Pilot Air Control Valve
Body Material
Die Cast Zinc
Valve Actuator / Return
Manual Bleed / Manual Bleed
Series
H
Pilot Pressure
1 psi
Max. CFM - Valves
55 scfm
Connection
NPT
Valve Max. Pressure Rating
150 psi
Number of Ports
4
Valve Ways and Positions
4-Way/2-Position
Valve Type
Poppet
Seal Material
Buna-N
For Media
Air
Operating Pressure - Minimum
20 psi
Number of Positions
Two-Position
Number of Ways
Four-Way
Valve Action
Normally Open
Operating Temperature - Maximum
180 Degrees F
Return Action
Bleed
Actuator Type
Bleed
Valve Port Connection Type
NPT
Pilot Port Connection Type
NPT
Product Type
Pilot Air Control Valve
Coefficient of Volume (Cv)
1.4
Vacuum Rating
Not Vacuum Operable
Pilot Port Connection Gender
Female
Operating Temperature - Minimum
10 Degrees F
Flow Rate - Maximum
50 scfm
Override
No Override
Operating Pressure - Maximum
150 psi

Description

Pilot Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Actuator / Return Manual Bleed / Manual Bleed, Valve Port Size 1/4 in, Max. CFM - Valves 55 scfm, Center Position Not Applicable, Pilot Pressure 1 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
