Shop All Oil Removal Filters
Aro

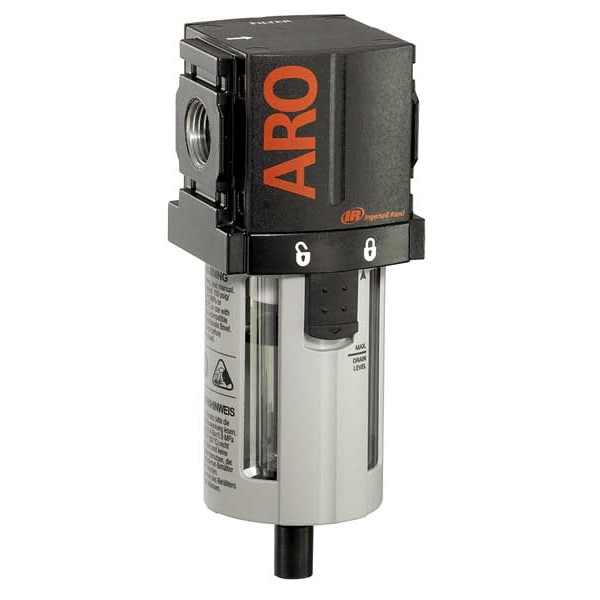

Pneumatic Oil Filter, 3/8 In. NPT, 107 cfm

product price: $104.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Filter Rating - Air Treatment 0.3 micron
  • Connection Size - Air Treatment 3/8 in NPT
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 107 cfm
  • Bowl Material - Air Treatment Metal
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 3/8 in NPT
Size - Air Treatment Compact
Bowl Size - Air Treatment 1.2 oz
Size Compact
Overall Width 2 1/4 in
Drain Port Size Push Type
Overall Height 6 3/16 in
Air Outlet Size 3/8 in
Air Inlet Size 3/8 in

Details

Item - Air Filters Oil Removal Filter
Filter Rating - Air Treatment 0.3 micron
Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 107 cfm
Bowl Material - Air Treatment Metal
For Removal Of Oil, Oil Vapor, Particles, Water
Housing Material Aluminum
Bowl Material Metal
Max. Pressure 250 psi
Drain Type Manual
Filter Rating 0.3 micron
Max. Temp. 175 Degrees F
Item Pneumatic Oil Filter
Minimum Operating Temperature 23 Degrees F
Filter Element Material HEPA Paper and Felt
Filter Bowl Capacity 1.2 oz
Filter Type Coalescing
Modular Connection Modular Connection
Air Inlet Type NPT
Body Material Aluminum
Maximum Flow Rate 107 cfm
Number of Air Inlets 1
Air Outlet Type NPT
For Substance Type Airborne Solid, Liquid Contaminants, Oil Aerosol
System Location Air Line
Maximum Operating Temperature 175 Degrees F
Drain Included Yes
For Fluid Type Liquid Contaminant, Oil
Seal Material Nitrile
Number of Air Outlets 1
Maximum Operating Pressure 250 psi
Series 1500
Filter Bowl Material Metal
Type Modular
Gauge Included No

Description

Pneumatic Oil Filter, Filter Type Coalescing, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 107 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 175 Degrees F, Overall Width 2 1/4 in, Overall Height 6 3/16 in, Drain Included Yes, Filter Bowl Material Aluminum, Drain Type Manual, Series 1500, Air Outlet Size 3/8 in, Air Outlet Type NPT, Body Material Aluminum, Filter Bowl Capacity 1.2 oz, Filter Element Material HEPA Paper and Felt, Filter Rating 0.3 micron
