Shop ARO

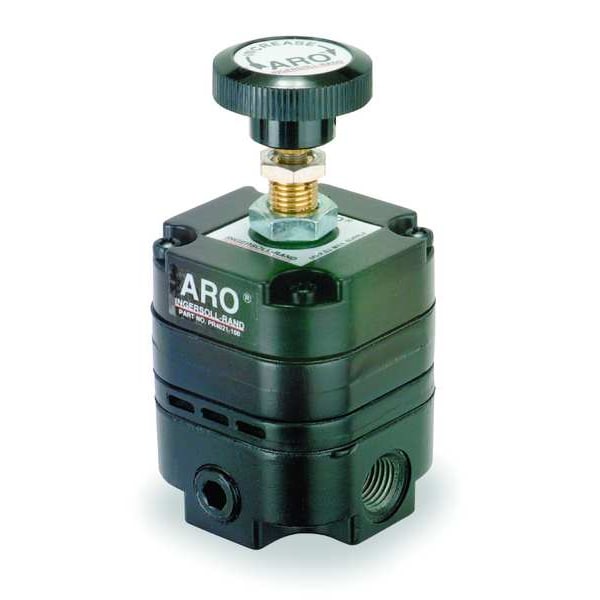

Precision Air Regulator, 1/4 In. NPT

  • Mfr # PR4021-200

  • Zoro # G2314365

product price:
$
281.99
/ea
Free Shipping & Returns

Key Features

Series
Precision
Max. Flow (Regulators)
14 cfm
Adjustment Range - Regulators
2 to 60 psi
Max. Temp. - Regulators
150 Degrees F
Max. Flow - Regulators
14 cfm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PR4021-200
Zoro #
G2314365
UPC #
-
Country of Origin
United States

Dimensions

Overall Width - Regulators
2.13 in
Pipe Size - Regulators
1/4 in
Overall Height (Regulators)
4.25"
Overall Width (Regulators)
2.13"
Overall Height - Regulators
4.25 in
Pipe Size (Regulators)
1/4"
Overall Length
2.13 in
Overall Height
4 1/4 in
Overall Width
2 1/8 in
Pressure Gauge Port Size
1/4 in
Overall Depth
2 1/8 in
Air Outlet Size
1/4 in
Air Inlet Size
1/4 in
Height
4.26"
Length
2.12"
Width
2.12"

Details

Item
Precision Compressed Air Regulator
Series
Precision
Max. Flow (Regulators)
14 cfm
Adjustment Range - Regulators
2 to 60 psi
Max. Temp. - Regulators
150 Degrees F
Max. Flow - Regulators
14 cfm
Adjustment Knob
Standard
Compressed Air Regulator Product Grouping
Precision Air Regulator
Valve Design
Balanced
Max. Inlet Pressure - Regulators
150 psi
Body Material
Zinc Die-Cast
Max. Inlet Pressure (Regulators)
150 psi
Gauge Port
1/4 in NPT
Adjustment Range (Regulators)
2 to 60 psi
Max. Temp. (Regulators)
150 Degrees F
Type
Precision
Air Outlet Gender
Female
Maximum Operating Pressure
150 psi
Adjustment Mechanism Material
Phenolic Plastic
Regulator Type
Relieving
Minimum Regulated Pressure
2 psi
Maximum Flow Rate
14 cfm
Air Inlet Type
NPT
Maximum Regulated Pressure
60 psi
For Substance Type
Air
Minimum Operating Temperature
20 Degrees F
Pressure Gauge Port Type
NPT
Weight
1.4 lb
Adjustment Mechanism
Knob
For Fluid Type
Air
Standards
ATEX Directive 94/9/EEC or 2014/34/EU, IRITS-1215-197
Air Outlet Type
NPT
Air Inlet Gender
Female
Maximum Operating Temperature
150 Degrees F
Pressure Gauge Included
No
Max. Pressure
150 psi

Description

Precision Compressed Air Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 14 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 150 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Knob, Overall Width 2 1/8 in, Series Precision, Adjustment Mechanism Material Phenolic Plastic, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Zinc Die-Cast, For Fluid Type Air, For Substance Type Air
