Product Information
MFR #
TP12C4D-024-V
Zoro #
G1696134
UPC #
-
Country of Origin
Unknown
Dimensions
Overall Height
1 11/16 in
Overall Width
7/16 in
Overall Length
3 1/2 in
Details
Item

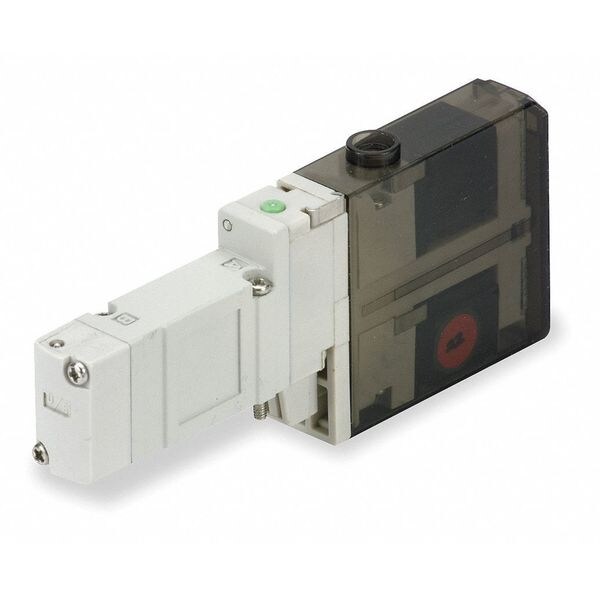

Solenoid Air Control Valve
Valve Ways and Positions
4-Way/2-Position
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Coefficient of Volume
0.22
Max. CFM - Valves
8.50
Operational Pressure Range
14.5 to 101.5 psi
Pressure Range
14.5 to 101.5 psi
Ambient Temp. Range
23 Degrees to 122 Degrees F
Electrical Connections
Plug-In
Standards
RoHS, UL
Power Consumption
0.85W
CFM
8.5
Shifting Technology
Solenoid/Pilot
Air Valve Type
4-Way, 2-Position
Actuator/Return
Solenoid/Solenoid
Description
Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Solenoid, Max. CFM - Valves 8.50, Operational Pressure Range 14.5 to 101.5 psi, Coefficient of Volume 0.22, Plug-In Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 0.85W, Ambient Temp. Range 23 Degrees to 122 Degrees F, Overall Height 1 11/16 in, Overall Length 3 1/2 in, Overall Width 7/16 in, Standards RoHS, UL, Solenoid Air Control Valve
