Shop ARO

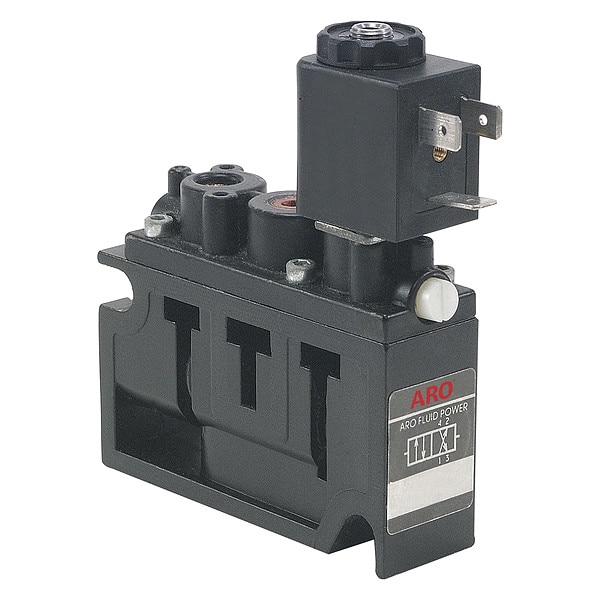

Solenoid Air Con Valve, Four-Way, 150 psi

  • Mfr # A222SS-024-L
  • Zoro # G4138733
product price:
$
137.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Voltage
24V AC/DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
5.4 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A222SS-024-L
Zoro #
G4138733
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Voltage
24V AC/DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
5.4 W
Body Material
Zinc
Override
Non-Locking
Valve Ways and Positions
4-Way/2-Position
Number of Ways
Four-Way
Shifting Technology
Ground Spool
Standards
cURus Listed
Max. CFM - Valves
63 scfm
Number of Positions
Two-Position
Operational Pressure Range
Vacuum to 150 psi
Ambient Temp. Range
0 Degrees to 180 Degrees F
Response Time
22 msec
Inlet Port Connection Type
NPT
Vacuum Rating
Vacuum Operable
Inlet Port Connection Gender
Female
Number of Ports
5
Flow Rate - Maximum
63 cfm
Exhaust Port Connection Gender
Female
Spool Material
Aluminum
Pilot Port Connection Type
NPT
Fail Position
Open
Product Type
Solenoid Air Control Valve
Valve Action
Normally Open
Lubrication
Lubrication Not Required
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
0 Degrees F
Electrical Connection Type
DIN Solenoid Connector
Includes Mounting Hardware
Hardware Not Included
Actuator Type
Single Solenoid
Includes Solenoid Coil
Solenoid Coil Included
Pilot Type
Internal Pilot
Return Action
Spring Return
For Media
Compressed Air, Inert Gas
Operating Pressure - Maximum
150 psi
Coefficient of Volume (Cv)
1.9
Exhaust Port Connection Type
NPT
Valve Type
Spool
Body Features
Stackable
Pilot Port Connection Gender
Female

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V AC/DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Max. CFM - Valves 63 scfm, Operational Pressure Range Vacuum to 150 psi, Body Style Base-Mounted, Pilot Port Size 1/4 In. NPT, Pilot Pressure Not Applicable, Shifting Technology Ground Spool, Power Consumption 5.4 W, Ambient Temp. Range 0 Degrees to 180 Degrees F, Override Non-Locking
