Shop ARO

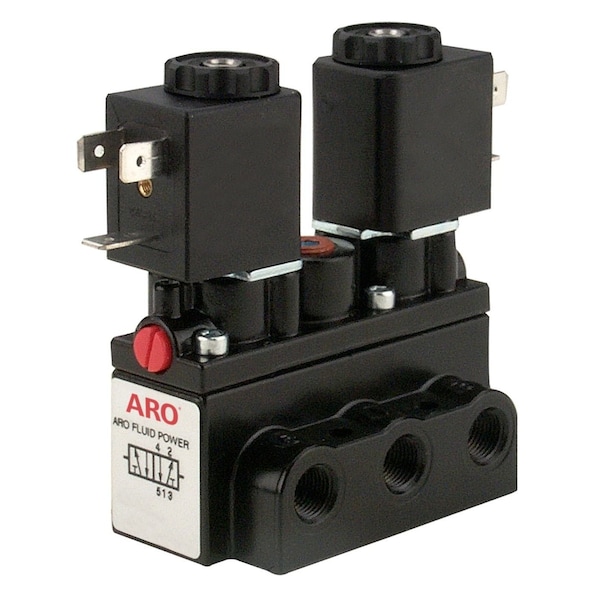

Solenoid Air Con Valve, Four-Way, 150 psi

  • Mfr # A912SD-024-A

  • Zoro # G4138286

product price:
$
287.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Voltage
24V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A912SD-024-A
Zoro #
G4138286
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Voltage
24V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
Center Position
Exhaust
Body Material
Zinc
Override
Non-Locking
Valve Ways and Positions
4-Way/3-Position
Standards
cURus Listed
Number of Ways
Four-Way
Max. CFM - Valves
45 scfm
Shifting Technology
Ground Spool
Operational Pressure Range
Vacuum to 150 psi
Number of Positions
Two-Position
Ambient Temp. Range
0 Degrees to 180 Degrees F
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Fail Position
Closed
Flow Rate - Maximum
45 cfm
Includes Solenoid Coil
Solenoid Coil Included
Operating Pressure - Maximum
150 psi
Spool Material
Aluminum
Pilot Port Connection Type
NPT
Return Action
Solenoid Return
Number of Ports
5
Lubrication
Lubrication Not Required
Exhaust Port Connection Gender
Female
Inlet Port Connection Type
NPT
Response Time
20 msec
Vacuum Rating
Vacuum Operable
Coefficient of Volume (Cv)
1.4
Operating Temperature - Minimum
0 Degrees F
Body Features
Single
Pilot Type
Internal Pilot
Electrical Connection Type
DIN Solenoid Connector
Exhaust Port Connection Type
NPT
Valve Action
Normally Closed
Pilot Port Connection Gender
Female
Operating Temperature - Maximum
180 Degrees F
Valve Type
Spool
For Media
Compressed Air, Inert Gas
Actuator Type
Double Solenoid
Includes Mounting Hardware
Hardware Not Included

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 24V AC, Center Position Exhaust, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Max. CFM - Valves 45 scfm, Operational Pressure Range Vacuum to 150 psi, Body Style Base-Mounted, Pilot Port Size 1/4 In. NPT, Pilot Pressure Not Applicable, Shifting Technology Ground Spool, Power Consumption 6.9 W, Ambient Temp. Range 0 Degrees to 180 Degrees F, Override Non-Locking, Overall Height 3 1/4 in
