Shop ARO

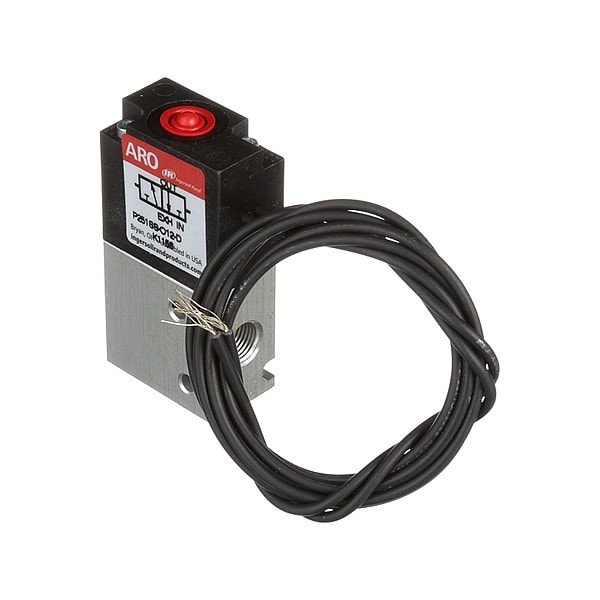

Solenoid Air Con Valve, Three-Way, 125 psi

  • Mfr # P251SS-012-D

  • Zoro # G1419713

product price:
$
77.29
/ea

Key Features

Body Style
Body-Ported
Series
Premair
Voltage
12V DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
4.5 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
P251SS-012-D
Zoro #
G1419713
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Body-Ported
Series
Premair
Voltage
12V DC
Valve Actuator / Return
Solenoid / Spring
Power Consumption
4.5 W
Coefficient of Volume
0.144
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
Lead Wire
Valve Ways and Positions
3-Way/2-Position
Ambient Temp. Range
32 Degrees to 125 Degrees F
Pressure Range
0 to 120 psi
NEMA Classification
NEMA 4
Air Valve Type
3-Way, 2-Position
Operational Pressure Range
0 to 120 psi
Max. CFM - Valves
6.9 cfm
Shifting Technology
Direct
CFM
6.9
Number of Ways
Three-Way
Number of Positions
Two-Position
Seal Material
Acetal
Pilot Port Connection Type
NPT
Valve Action
Normally Open/Normally Closed
Number of Ports
3
Inlet Port Connection Type
NPT
NEMA Rating
4
Operating Pressure - Minimum
0 psi
Operating Temperature - Maximum
125 Degrees F
Return Action
Spring Return
Exhaust Port Connection Gender
Female
Electrical Connection Type
DIN Solenoid Connector
Lubrication
Pre-Lubricated
For Media
Air, Inert Gas
Fail Position
Closed
Includes Mounting Hardware
Hardware Not Included
Vacuum Rating
Not Vacuum Operable
Return Time
20 msec
Exhaust Port Connection Type
NPT
Operating Temperature - Minimum
32 Degrees F
Product Type
Solenoid Air Control Valve
Body Features
Single
Pilot Port Connection Gender
Female
Operating Pressure - Maximum
125 psi
Poppet Material
Stainless Steel
Valve Type
Poppet
Pilot Type
Internal Pilot
Includes Solenoid Coil
Solenoid Coil Included
Coefficient of Volume (Cv)
0.144
Inlet Port Connection Gender
Female
Flow Rate - Maximum
6.9 cfm
Actuator Type
Single Solenoid
Response Time
0.012 msec

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 12V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/8 in, Max. CFM - Valves 6.9 cfm, Operational Pressure Range 0 to 120 psi, NEMA Classification NEMA 4, Body Style Body-Ported, Pilot Pressure Not Applicable, Coefficient of Volume 0.144, Lead Wire Electrical Connections, Shifting Technology Direct, Power Consumption 4.5 W
