Shop All Solenoid Air Control Valves
Aro

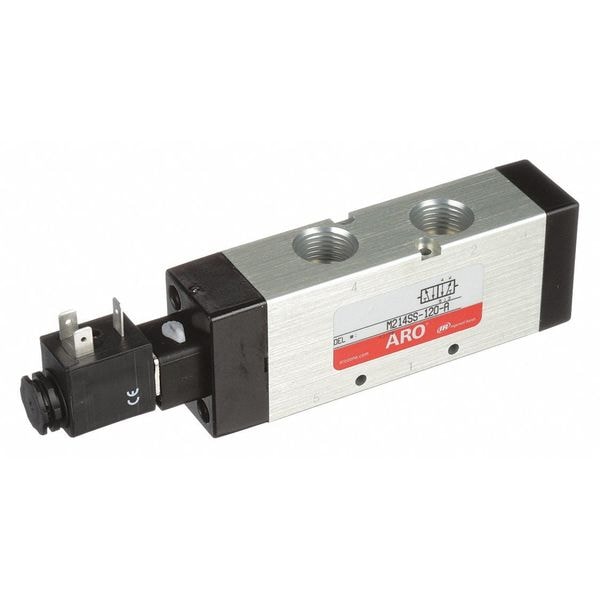

Solenoid Air Control Valve, 1/2 In, 120VAC

product price: $308.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 4-Way/2-Position
  • Voltage 120V AC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 4.32
  • Pipe Size 1/2 in
See all product information

Product Information

Dimensions

Pipe Size 1/2 in
Overall Length 7 1/2 in
Overall Width 1 11/32 in
Overall Height 2 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 4-Way/2-Position
Voltage 120V AC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 4.32
Max. CFM - Valves 150 cfm
Operational Pressure Range 45 to 115 psi
NEMA Classification NEMA 4
CFM 150
Power Consumption 4.8 W
Shifting Technology Solenoid/Pilot
Body Style Body Ported
Air Valve Type 4-Way, 2-Position
Electrical Connections DIN Connectors
Pressure Range 45 to 115 psi
Actuator/Return Solenoid/Spring
Ambient Temp. Range 0 Degrees to 122 Degrees F

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/2 in, Max. CFM - Valves 150 cfm, Operational Pressure Range 45 to 115 psi, NEMA Classification NEMA 4, Body Style Body Ported, Coefficient of Volume 4.32, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 4.8 W, Ambient Temp. Range 0 Degrees to 122 Degrees F, Overall Height 2 in, Overall Length 7 1/2 in
