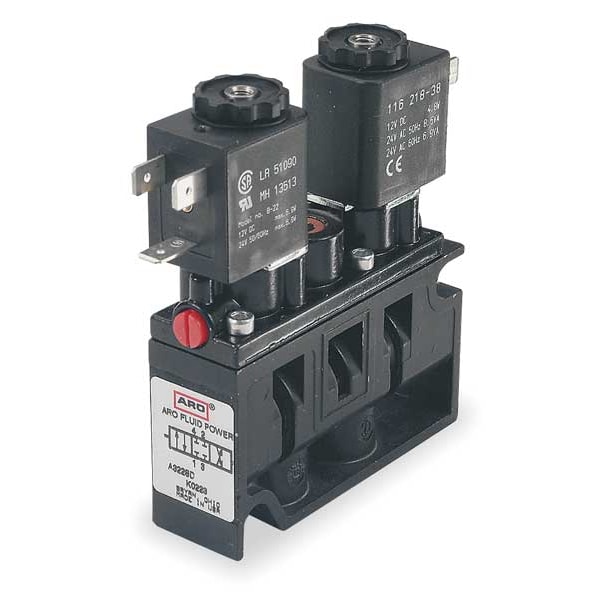

Solenoid Air Control Valve, 1/4 In, 120VAC

  • Mfr # A322SD-120-A

  • Zoro # G0776526

product price:  $318.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A322SD-120-A
Zoro #
G0776526
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
3 7/8 in
Overall Width
1 in
Overall Length
3 7/16 in
Pipe Size
1/4 in
Exhaust Port Connection Size
3/8 in
Inlet Port Connection Size
1/4 in
Pilot Port Connection Size
10-32

Details

Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
Coefficient of Volume
0.7
Center Position
Closed
Body Material
Zinc
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
DIN Connectors
Valve Ways and Positions
4-Way/3-Position
Air Valve Type
4-Way, 3-Position
Ambient Temp. Range
0 Degrees to 180 Degrees F
Pressure Range
0 to 150 psi
NEMA Classification
NEMA 4
Valve Vacuum Range
0 to 29 in Hg
Shifting Technology
Solenoid/Pilot
Max. CFM - Valves
61 cfm
Operational Pressure Range
0 to 150 psi
CFM
61
Standards
cURus Listed
Number of Positions
Three-Position
Number of Ways
Four-Way
Fail Position
Closed
Operating Pressure - Maximum
150 psi
Lubrication
Lubrication Not Required
Includes Mounting Hardware
Hardware Not Included
Return Action
Solenoid Return
Electrical Connection Type
DIN Solenoid Connector
Valve Type
Spool
Includes Solenoid Coil
Solenoid Coil Included
Flow Rate - Maximum
57 cfm
Response Time
20 msec
Body Features
Stackable
Actuator Type
Double Solenoid
Vacuum Rating
Vacuum Operable
Inlet Port Connection Type
NPT
Exhaust Port Connection Gender
Female
Valve Action
Normally Closed
Spool Material
Aluminum
Pilot Port Connection Type
NPT
Inlet Port Connection Gender
Female
Operating Temperature - Maximum
180 Degrees F
Number of Ports
5
Operating Temperature - Minimum
0 Degrees F
Coefficient of Volume (Cv)
1.7
Pilot Type
Internal Pilot
Pilot Port Connection Gender
Female
Exhaust Port Connection Type
NPT
For Media
Compressed Air, Inert Gas
NEMA Rating
4
Product Type
Solenoid Air Control Valve

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 120V AC, Center Position Closed, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 1/4 in, Max. CFM - Valves 61 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Base-Mounted, Pilot Pressure Not Applicable, Coefficient of Volume 0.7, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot
