Aro

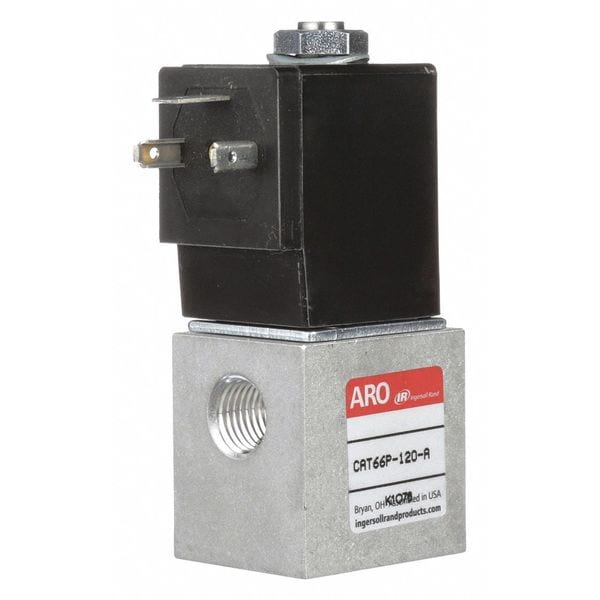

Solenoid Air Control Valve, 1/4 In, 120VAC

product price: $103.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Overall Length 2 1/8 in
  • Normally Open / Normally Closed Normally Closed
  • Coefficient of Volume 0.2
  • Max. CFM - Valves 7 cfm
See all product information

Product Information

Dimensions

Overall Length 2 1/8 in
Overall Height 3 1/2 in
Pipe Size 1/4 in
Overall Width 1 1/4 in

Details

Voltage 120V AC
Item Solenoid Air Control Valve
Normally Open / Normally Closed Normally Closed
Coefficient of Volume 0.2
Max. CFM - Valves 7 cfm
Ambient Temp. Range 0 Degrees to 122 Degrees F
Electrical Connections DIN Connectors
Shifting Technology Direct
Pressure Range 0 to 150 psi
Standards CSA #LR51090, UL #MH13513
Operational Pressure Range 0 to 150 psi
Valve Ways and Positions 3-Way/2-Position
NEMA Classification NEMA 4
Body Style Body Ported
Actuator/Return Solenoid/Spring
Air Valve Type 3-Way, 2-Position
Power Consumption 15 W
CFM 7.0
Valve Actuator / Return Solenoid / Spring

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/4 in, Max. CFM - Valves 7 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Closed, Body Style Body Ported, Coefficient of Volume 0.2, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 15 W, Ambient Temp. Range 0 Degrees to 122 Degrees F, Overall Height 3 1/2 in, Overall Length 2 1/8 in
