Aro

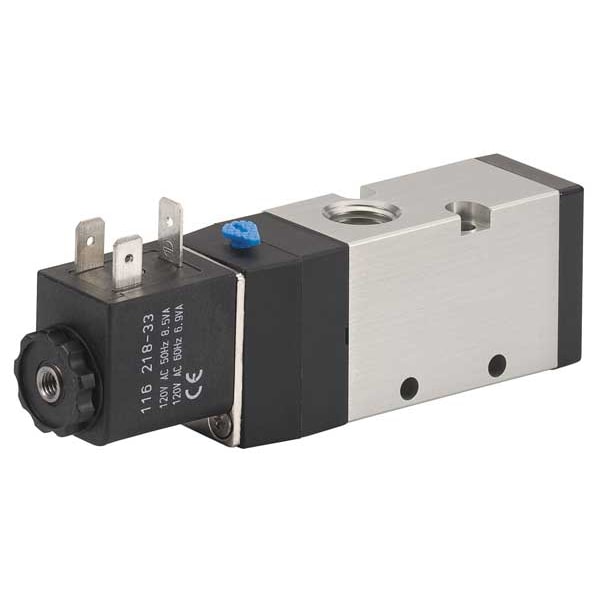

Solenoid Air Control Valve, 1/4 In, 120VAC

product price: $94.25
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Valve Ways and Positions 3-Way/2-Position
  • Voltage 120V AC
  • Valve Actuator / Return Solenoid / Spring
  • Coefficient of Volume 0.7
  • Pipe Size 1/4 in
See all product information

Product Information

Dimensions

Pipe Size 1/4 in
Overall Height 1 1/2 in
Overall Width 1 in
Overall Length 4 1/2 in

Details

Item Solenoid Air Control Valve
Valve Ways and Positions 3-Way/2-Position
Voltage 120V AC
Valve Actuator / Return Solenoid / Spring
Coefficient of Volume 0.7
Max. CFM - Valves 26 cfm
Operational Pressure Range 45 to 115 psi
NEMA Classification NEMA 4
Shifting Technology Solenoid/Pilot
Pressure Range 45 to 115 psi
Air Valve Type 3-Way, 2-Position
Electrical Connections DIN Connectors
Ambient Temp. Range 15 Degrees to 122 Degrees F
CFM 26
Actuator/Return Solenoid/Spring
Normally Open / Normally Closed Normally Closed

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/4 in, Max. CFM - Valves 26 cfm, Operational Pressure Range 45 to 115 psi, NEMA Classification NEMA 4, Normally Closed, Coefficient of Volume 0.7, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot, Ambient Temp. Range 15 Degrees to 122 Degrees F, Overall Height 1 1/2 in, Overall Length 4 1/2 in, Overall Width 1 in
