Shop ARO

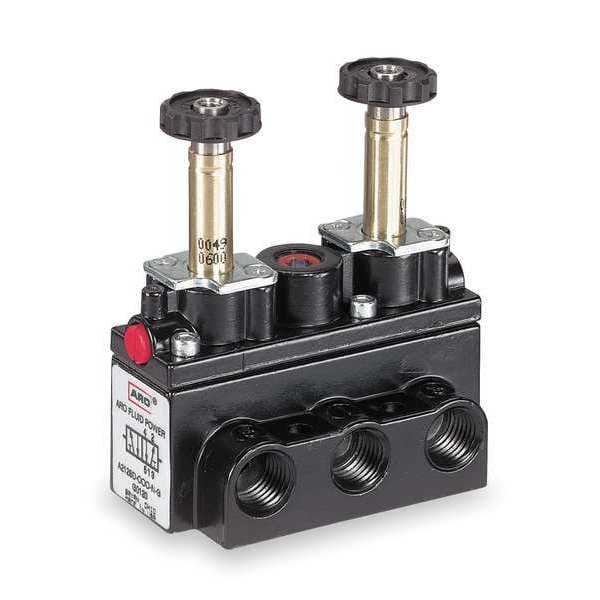

Solenoid Air Control Valve, 1/4 In, 4-Way

  • Mfr # A712SD-000-N

  • Zoro # G1982425

product price:
$
203.69
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
0 W
Coefficient of Volume
1.65
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A712SD-000-N
Zoro #
G1982425
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
0 W
Coefficient of Volume
1.65
Vacuum Range
29" Hg
Center Position
Exhaust
Body Material
Zinc
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
DIN Connectors
Valve Ways and Positions
4-Way/3-Position
Valve Vacuum Range
0 to 29 in Hg
Air Valve Type
4-Way, 3-Position
Max. CFM - Valves
50 cfm
Ambient Temp. Range
0 Degrees to 180 Degrees F
CFM
50
Operational Pressure Range
50 to 150 psi
NEMA Classification
NEMA 4
Pressure Range
50 to 150 psi
Shifting Technology
Solenoid/Pilot
Standards
cURus Listed
Number of Positions
Three-Position
Number of Ways
Four-Way
Vacuum Rating
Vacuum Operable
Coefficient of Volume (Cv)
1.4
Response Time
20 msec
Exhaust Port Connection Type
NPT
Flow Rate - Maximum
50 cfm
Number of Ports
5
Pilot Type
Internal Pilot
Pilot Port Connection Type
NPT
Return Action
Solenoid Return
Operating Pressure - Maximum
150 psi
Fail Position
Closed
Includes Mounting Hardware
Hardware Not Included
Body Features
Single
Includes Solenoid Coil
Solenoid Coil Not Included
For Media
Compressed Air, Inert Gas
Spool Material
Aluminum
Valve Type
Spool
Exhaust Port Connection Gender
Female
Electrical Connection Type
DIN Solenoid Connector
Product Type
Solenoid Air Control Valve
Operating Temperature - Minimum
0 Degrees F
Valve Action
Normally Closed
Lubrication
Lubrication Not Required
Inlet Port Connection Type
NPT
Pilot Port Connection Gender
Female
Operating Temperature - Maximum
180 Degrees F
Inlet Port Connection Gender
Female
NEMA Rating
4
Actuator Type
Double Solenoid

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage Not Applicable, Center Position Exhaust, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 1/4 in, Max. CFM - Valves 50 cfm, Operational Pressure Range 50 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Base-Mounted, Pilot Pressure Not Applicable, Coefficient of Volume 1.65, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot
