Shop ARO

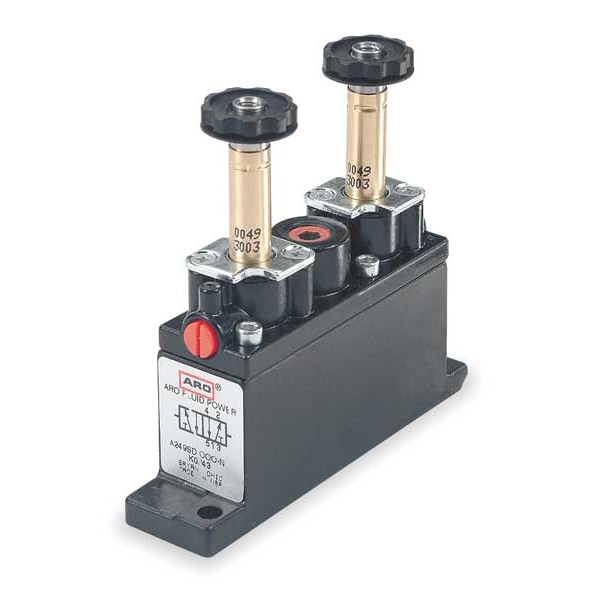

Solenoid Air Control Valve, 1/8 In, 120VAC

  • Mfr # A249SD-000-N

  • Zoro # G0490926

product price:
$
154.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
A249SD-000-N
Zoro #
G0490926
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
Body Material
Zinc
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
DIN Connectors
Valve Ways and Positions
4-Way/2-Position
Operational Pressure Range
50 to 150 psi
Shifting Technology
Solenoid/Pilot
CFM
61
Valve Vacuum Range
0 to 29 in Hg
Ambient Temp. Range
0 Degrees to 180 Degrees F
NEMA Classification
NEMA 4
Max. CFM - Valves
61 cfm
Air Valve Type
4-Way, 2-Position
Pressure Range
50 to 150 psi
Standards
cURus Listed
Number of Ways
Four-Way
Number of Positions
Two-Position
NEMA Rating
4
Includes Solenoid Coil
Solenoid Coil Not Included
Coefficient of Volume (Cv)
1.2
Electrical Connection Type
DIN Solenoid Connector
Operating Temperature - Minimum
0 Degrees F
Lubrication
Lubrication Not Required
Pilot Port Connection Gender
Female
Includes Mounting Hardware
Hardware Not Included
Valve Action
Normally Open
Valve Type
Spool
Return Action
Solenoid Return
Pilot Port Connection Type
NPT
Product Type
Solenoid Air Control Valve
Operating Temperature - Maximum
180 Degrees F
Pilot Type
Internal Pilot
Operating Pressure - Maximum
150 psi
Exhaust Port Connection Type
NPT
Fail Position
Open
Body Features
Thin
Exhaust Port Connection Gender
Female
Inlet Port Connection Gender
Female
For Media
Air
Flow Rate - Maximum
61 cfm
Vacuum Rating
Vacuum Operable
Inlet Port Connection Type
NPT
Number of Ports
5
Response Time
20 msec
Spool Material
Aluminum
Actuator Type
Double Solenoid

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 1/8 in, Max. CFM - Valves 61 cfm, Operational Pressure Range 50 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Base-Mounted, Pilot Pressure Not Applicable, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 6.9 W
