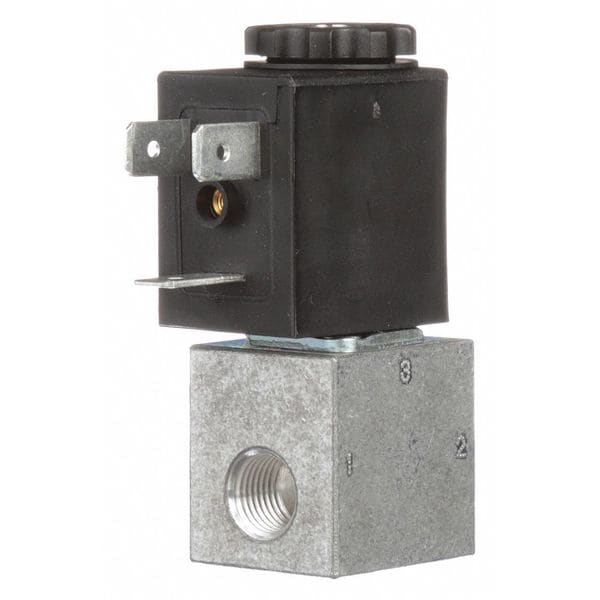

Solenoid Air Control Valve, 1/8 In, 120VAC

  • Mfr # CAT33P-120-A

  • Zoro # G2425805

product price:
$
74.99
/ea

Key Features

Voltage
120V AC
Ambient Temp. Range
0 Degrees to 122 Degrees F
Air Valve Type
3-Way, 2-Position
Shifting Technology
Direct
Overall Length
1 5/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CAT33P-120-A
Zoro #
G2425805
UPC #
-
Country of Origin
United States
Voltage
120V AC
Ambient Temp. Range
0 Degrees to 122 Degrees F
Air Valve Type
3-Way, 2-Position
Shifting Technology
Direct
Item
Solenoid Air Control Valve
Valve Ways and Positions
3-Way/2-Position
Operational Pressure Range
0 to 150 psi
Coefficient of Volume
0.062
Valve Actuator / Return
Solenoid / Spring
Body Style
Body-Ported
Pressure Range
0 to 150 psi
CFM
2.2
Standards
CSA LR51090, UL MH13513
Normally Open / Normally Closed
Normally Closed
Electrical Connections
DIN Connectors
Power Consumption
6.9 W
Actuator/Return
Solenoid/Spring
Max. CFM - Valves
2.2 cfm
NEMA Classification
NEMA 4
Series
CAT
Return Action
Spring Return
Pilot Port Connection Type
NPT
For Media
Air
Number of Positions
Two-Position
Number of Ways
Three-Way
Valve Type
Poppet
Override
Non-Locking
Number of Ports
3
Body Features
Single
Product Type
Solenoid Air Control Valve
Valve Action
Normally Closed
Operating Pressure - Minimum
0 psi
Pilot Port Connection Gender
Female
NEMA Rating
4
Pilot Type
Internal Pilot
Inlet Port Connection Gender
Female
Response Time
9 msec
Operating Temperature - Maximum
122 Degrees F
Spool Material
Stainless Steel
Actuator Type
Single Solenoid
Includes Mounting Hardware
Hardware Not Included
Body Material
Aluminum
Electrical Connection Type
DIN Solenoid Connector
Operating Temperature - Minimum
0 Degrees F
Operating Pressure - Maximum
150 psi
Fail Position
Closed
Vacuum Rating
Not Vacuum Operable
Inlet Port Connection Type
NPT
Includes Solenoid Coil
Solenoid Coil Included
Flow Rate - Maximum
2.2 cfm
Exhaust Port Connection Gender
Female
Exhaust Port Connection Type
NPT
Coefficient of Volume (Cv)
0.062

Description

Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 1/8 in, Max. CFM - Valves 2.2 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Closed, Body Style Body-Ported, Pilot Pressure Not Applicable, Coefficient of Volume 0.062, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 6.9 W
