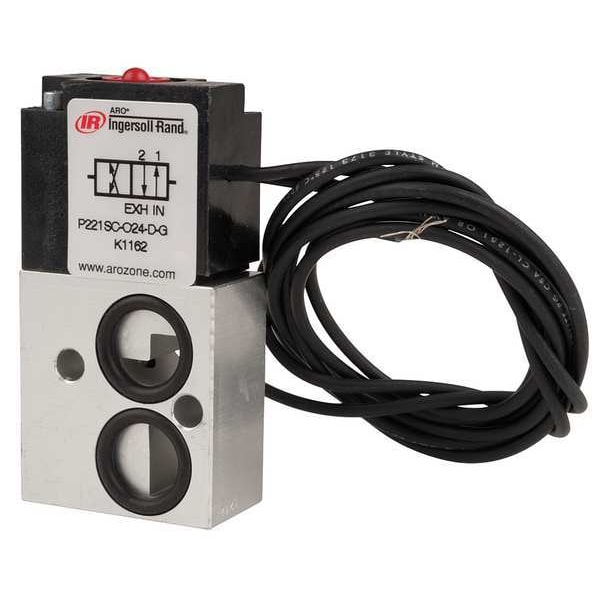

Solenoid Air Control Valve, 1/8 In, 24VDC

ARO| Zoro #: G0578347| Mfr #: P221SC-024-D

$62.62 /ea

This item ships free. DetailsStandard ground shipping
This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0578347 Mfr #: P221SC-024-D
Actuator/Return: Solenoid/SpringCFM: 6.9
Coefficient of Volume: 0.144Item: Solenoid Air Control Valve
Pipe Size: 1/8"Overall Width: 1"
Overall Length: 1-1/4"Overall Height: 2-3/4"
Air Valve Type: 4-Way, 2-PositionBody Style: Stackable
NEMA Classification: NEMA 4Ambient Temp. Range: 32 Degrees to 125 Degrees F
Override: Non-Locking ManualShifting Technology: Direct
Voltage: 24VDCElectrical Connections: Lead Wire
Pressure Range: 0 to 120 psiPower Consumption: 4.5W
Country of Origin (subject to change): United States

Product Description

Solenoid Air Control Valve, 4-Way, 2-Position, Actuator/Return Solenoid/Spring, Body Style Stackable, Pipe Size 1/8 In., Voltage 24VDC, 6.9 CFM, Coefficient of Volume 0.144, Lead Wire Electrical Connections, Shifting Technology Direct, Power Consumption 4.5W, Pressure Range 0 to 120 psi, Ambient Temp. Range 32 Degrees to 125 Degrees F, Override Non-Locking Manual, Overall Height 2-3/4 In., Overall Length 1-1/4 In., Overall Width 1 In., NEMA Classification NEMA 4
