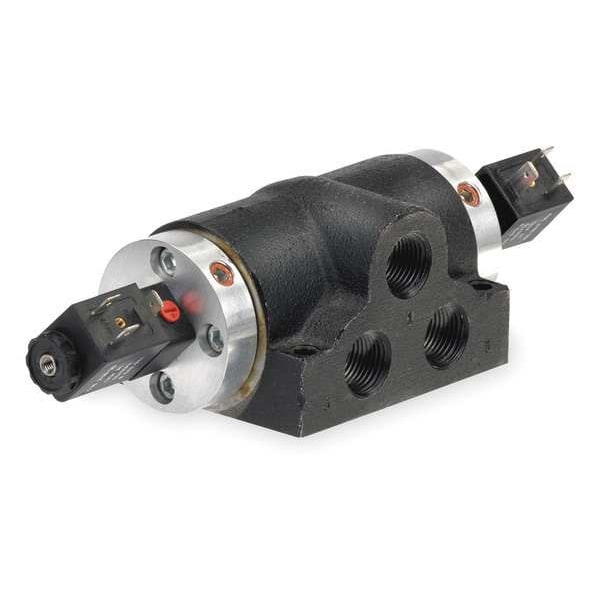

Solenoid Air Control Valve, 3/8 In, 120VAC

  • Mfr # K313SD-120-A

  • Zoro # G1560596

product price:
$
762.99
/ea
Free Shipping & Returns

Key Features

Body Style
Body-Ported
Series
K
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
K313SD-120-A
Zoro #
G1560596
UPC #
-
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Body-Ported
Series
K
Voltage
120V AC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
6.9 W
Coefficient of Volume
2.3
Center Position
Closed
Body Material
Aluminum
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
DIN Connectors
Valve Ways and Positions
4-Way/3-Position
Ambient Temp. Range
-10 Degrees to 180 Degrees F
Operational Pressure Range
20 to 150 psi
Pressure Range
20 to 150 psi
CFM
83
Air Valve Type
4-Way, 3-Position
NEMA Classification
NEMA 4
Shifting Technology
Solenoid/Pilot
Standards
RoHS Compliant, UL Listed
Max. CFM - Valves
83 cfm
Number of Ways
Four-Way
Number of Positions
Three-Position
Pilot Type
Internal Pilot
Pilot Port Connection Gender
Female
Spool Material
Aluminum
Body Features
Single
Electrical Connection Type
DIN Solenoid Connector
Flow Rate - Maximum
83 cfm
Actuator Type
Double Solenoid
Response Time
60 msec
Includes Mounting Hardware
Hardware Not Included
Pilot Port Connection Type
NPT
Number of Ports
5
Valve Action
Normally Closed
Exhaust Port Connection Type
NPT
Operating Temperature - Maximum
180 Degrees F
Exhaust Port Connection Gender
Female
Fail Position
Closed
Inlet Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees F
Return Action
Solenoid Return
Vacuum Rating
Vacuum Operable
NEMA Rating
4
Operating Pressure - Minimum
20 psi
Lubrication
Lubrication Required
Includes Solenoid Coil
Solenoid Coil Included
For Media
Air
Inlet Port Connection Type
NPT
Coefficient of Volume (Cv)
2.3
Product Type
Solenoid Air Control Valve
Operating Pressure - Maximum
150 psi
Valve Type
Spool

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 120V AC, Center Position Closed, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 3/8 in, Max. CFM - Valves 83 cfm, Operational Pressure Range 20 to 150 psi, NEMA Classification NEMA 4, Body Style Body-Ported, Pilot Pressure Not Applicable, Coefficient of Volume 2.3, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 6.9 W
