Shop ARROW LOCK

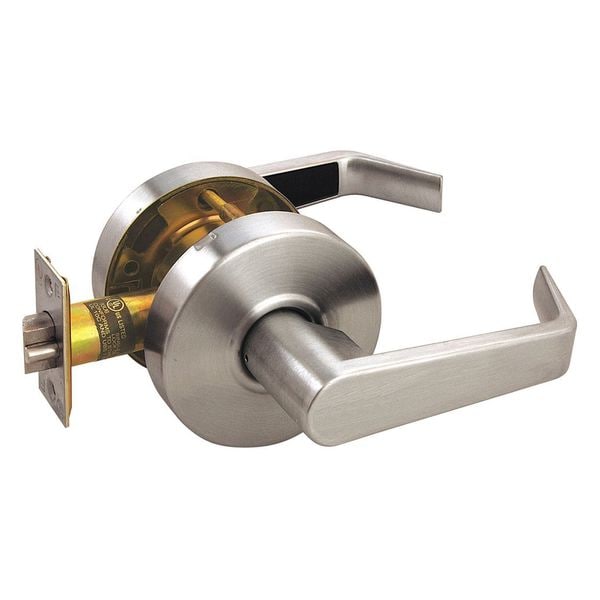

Lever Lockset, Mechanical, Passage, Grd. 2

  • Mfr # RL01SR 26D

  • Zoro # G8696782

product price:
$
66.29
/ea

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel Doors
Includes
Hardware
Key Type
Keyed Alike
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RL01SR 26D
Zoro #
G8696782
UPC #
-
Country of Origin
Mexico

Dimensions

Required Door Thickness
1-3/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Wood, Steel Doors
Includes
Hardware
Key Type
Keyed Alike
Keyway Type
Arrow A
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6 or 7
Series
RL
Style
RL Angled
Finish
Satin Chrome
Strike Type
Full Lip
Strike Dim.
1-1/4 in x 4-7/8 in
Item
Door Lockset
ADA Compliant
Yes
Handle Material
Zinc
Lockset Fire Rating
3 hr
Ligature Resistant
No
Lockset Finish
Satin Chrome
Lockset Performance Strength
Medium Duty
Mortise / Cylindrical
Cylindrical
Cylinder Core Type
Interchangeable Core Cylinder
Features
Finishes and Functions, THERL Series Has Been Enhanced to Offer Removable Through Bolts and A Wide Variety of Designs
Fire Rated
3 hr.
Number of Keys
2
Grade
2
Standards
ANSI, UL Listed
Key Material
Brass
Function
Passage
Cylinder
Not Included
Application
Commercial, Multiple Family Residential
Visual Indicator Message
No Message
Fire Rating
3 hr
Locking/Unlocking Access - Inside
Not Lockable
Knob/Handle Material
Zinc
ANSI Grade
2
Includes Hardware
Hardware Included
Hand Orientation
Non-Handed
Latch Bolt/Dead Bolt
Latch Bolt
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
RL Rose
Lockset Type
Mechanical
Locking/Unlocking Access - Outside
Not Lockable
Lockset Function ANSI Code
F75
Performance Grade
2
ANSI/BHMA Finish
Satin Chromium-Plated
Includes Core
Core Not Included

Description

Lever, Medium Duty, Lockset Function Passage, Style Angled, Handle Material Zinc, Satin Chrome Finish, Strike Type ASA Strike, Strike Dim. 1-1/4 In. x 4-7/8 In., Fire Rated 3 hr., Grade 2, Series RL, Location Type Commercial, Backset 2-3/4 In., Cylinder Core Type Not Included, Required Door Thickness 1-3/4 In., For Use With Wood, Steel Doors, Features THERL Series Has Been Enhanced to Offer Removable Through Bolts and A Wide Variety of Designs, Finishes and Functions, Includes Hardware
