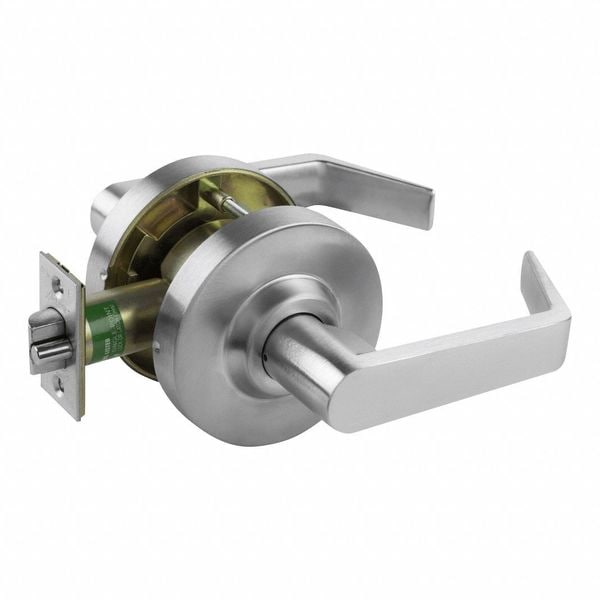

Arrow Lock Lever Lockset, Mechanical, Passage QL01-SR-26D - main

Lever Lockset, Mechanical, Passage

  • Mfr # QL01-SR-26D

  • Zoro # G509616235

product price: $120.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QL01-SR-26D
Zoro #
G509616235
UPC #
00197163089666
Country of Origin
United States

Dimensions

Required Door Thickness
2 1/8 in
Door Thickness - Maximum
1 3/4 in
Door Thickness - Minimum
1 3/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
1
Style
SR Sierra
Lockset Finish
Zinc Dichromate
Keyway Type
Schlage CS
Key Type
Keyed Alike
Number of Keys
2
Item
Door Lockset
Strike Dim.
4 7/8 in
Mortise/Cylindrical
Cylindrical
Strike Type
ANSI
Number of Pins
6
Location Type
Commercial
ADA Compliant
Yes
Features
Non-Handed
Standards
ANSI/BHMA A156.2, CUL, UL Listed
Ligature Resistant
No
Backset
2 3/4 in
Key Material
Brass
Lockset Fire Rating
3 hr
Cylinder Core Type
Schlage CS Keyway; SFIC; SIC
For Use With
Label Single Swinging Doors
Fire Rating - Door Hardware
3 hr
Visual Indicator Location
Inside/Outside
Application
Commercial
Visual Indicator Message
Open/Closed
Hand Orientation
Non-Handed
Lockset Style
SR Sierra
ANSI Grade
1
Locking/Unlocking Access - Outside
Keyway
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
Lockset Type
Mechanical
Knob/Handle Material
Wrought Brass
Lockset Function ANSI Code
F75
Latch Bolt/Dead Bolt
Latch Bolt
Performance Grade
1

Description

Lever Lockset,Mechanical,Passage
