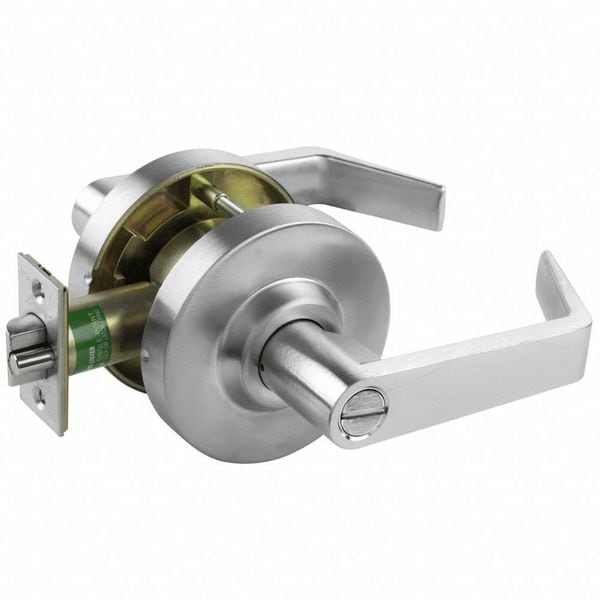

Arrow Lock Lever Lockset, Mechanical, Privacy MLX72-SR-26D - main

Lever Lockset, Mechanical, Privacy

  • Mfr # MLX72-SR-26D

  • Zoro # G109615904

product price: $88.49
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Privacy
Lockset Grade
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MLX72-SR-26D
Zoro #
G109615904
UPC #
00197163089567
Country of Origin
United States

Dimensions

Required Door Thickness
2 1/8 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Privacy
Lockset Grade
2
Style
SR Sierra
Lockset Finish
Zinc Dichromate
Keyway Type
Schlage CS
Key Type
Keyed Different
ADA Compliant
Yes
Ligature Resistant
No
Mortise/Cylindrical
Cylindrical
Key Material
Brass
Number of Pins
6
Lockset Fire Rating
3 hr
Features
Freewheeling Lever
Strike Type
ANSI
Backset
2 3/4 in
Cylinder Core Type
Schlage CS Keyway; SFIC; SIC
Number of Keys
2
Standards
ANSI/BHMA, CULFF-H-106C, UL Listed
Item
Door Lockset
Strike Dim.
4 7/8 in
Location Type
Commercial
Fire Rating - Door Hardware
3 hr
For Use With
Label Single Swinging Doors
Performance Grade
2
Lockset Type
Mechanical
Hand Orientation
Non-Handed
ANSI Grade
2
Application
Commercial, Hotels, Office, Restaurants
Knob/Handle Material
Wrought Brass
Lockset Function ANSI Code
F76
Latch Bolt/Dead Bolt
Latch Bolt
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
Lockset Style
SR Sierra
Locking/Unlocking Access - Inside
Push Button

Description

Lever Lockset,Mechanical,Privacy
