  13. Lever Lockset, Zinc, Mechanical, Passage

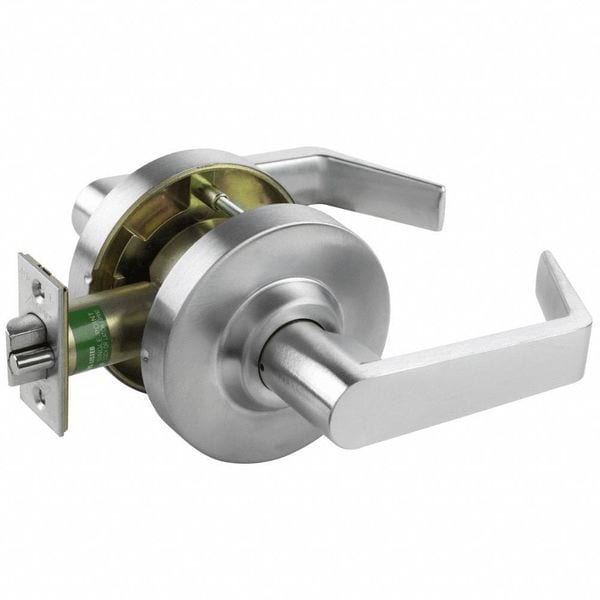

Arrow Lock Lever Lockset, Zinc, Mechanical, Passage MLX01-SR-26D - main

Lever Lockset, Zinc, Mechanical, Passage

  • Mfr # MLX01-SR-26D

  • Zoro # G809616089

product price: $87.19
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MLX01-SR-26D
Zoro #
G809616089
UPC #
00197163089468
Country of Origin
United States

Dimensions

Required Door Thickness
2 1/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Height
4 7/8 in
Door Thickness - Minimum
1 3/8 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Passage
Lockset Grade
2
Style
SR Sierra
Lockset Finish
Zinc Dichromate
Keyway Type
Schlage CS
Key Type
Not Keyed
Number of Keys
2
Location Type
Commercial
Strike Type
ANSI
Mortise/Cylindrical
Cylindrical
Backset
2 3/4 in
Number of Pins
6
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Standards
ANSI/BHMA, CULFF-H-106C, UL Listed
Key Material
Brass
Ligature Resistant
No
Features
Freewheeling Lever
Item
Door Lockset
Cylinder Core Type
Schlage CS Keyway; SFIC; SIC
Strike Dim.
4 7/8 in
Fire Rating - Door Hardware
3 hr
For Use With
Label Single Swinging Doors
Lockset Function ANSI Code
F75
Lockset Type
Mechanical
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
ANSI Grade
2
Application
Commercial, Hotels, Office, Restaurants
Performance Grade
2
Locking/Unlocking Access - Inside
Not Lockable
Lockset Style
SR Sierra
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Non-Handed
Locking/Unlocking Access - Outside
Not Lockable
Knob/Handle Material
Wrought Brass

Description

Lever Lockset,Zinc,Mechanical,Passage
