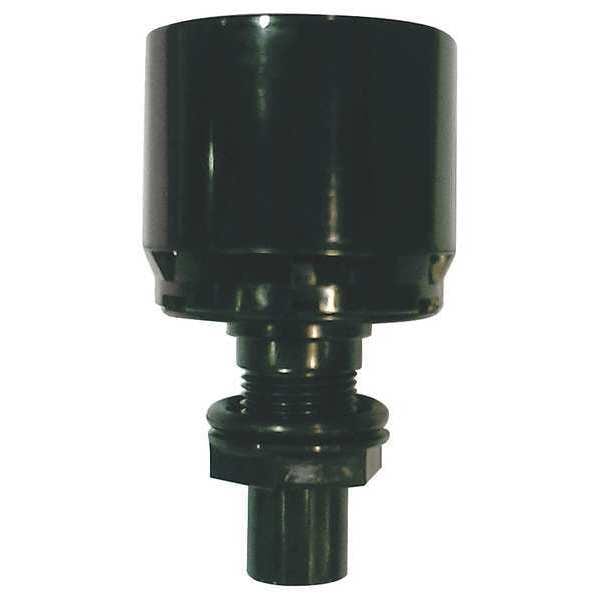

Arrow Pneumatics Automatic Drain FD06B - main

Automatic Drain

  • Mfr # FD06B

  • Zoro # G0602920

product price: $57.79
/ea

Key Features

NPT (In.)
3/8 in
Temp. Range
40 Degrees to 120 Degrees F
NPT Outlet
3/8 in
Design Type
Internal Float
Fits
Standard Regulators
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FD06B
Zoro #
G0602920
UPC #
-
Country of Origin
United States

Dimensions

Base Dia. (In.)
1.5 in
Height (In.)
2.5 in
Length (In.)
2.5 in
Width (In.)
1.5 in
Bolt Circle Dia. (In.)
0.375 in

Details

Item
Automatic Drain
NPT (In.)
3/8 in
Temp. Range
40 Degrees to 120 Degrees F
NPT Outlet
3/8 in
Design Type
Internal Float
Fits
Standard Regulators
Application
For Air Control Units At Inlet and Outlet
For Use On
Air Lines
Max. Tubing/Pipe O.D. (In.)
3/8 in
NPT
3/8 in
Function
Normally Closed Float Operated Drain Automatically Discharges Liquids From The Bowl When Liquids Reach A Predetermined Level
Includes
Mounting Nut, O-Ring
For Use with Model Number
F352F-S2, F354F-S2
Max. Temp. (F)
120 Degrees F
Connection
NPT
Center Hole (In.)
0.375 in
Max. Pressure (PSI)
175 psi
For Use with Stock Number
33X639, 33X640
Material
Metal
Type
General Purpose
Min. Tubing/Pipe O.D. (In.)
3/8 in
For Use on Filter
33X639, 33X640
Max. Working Pressure (PSI)
175 psi
For Use With Model Number
F352F-S2, F354F-S2

Description

Automatic Drain, Includes Mounting Nut, O-Ring, Material Metal
