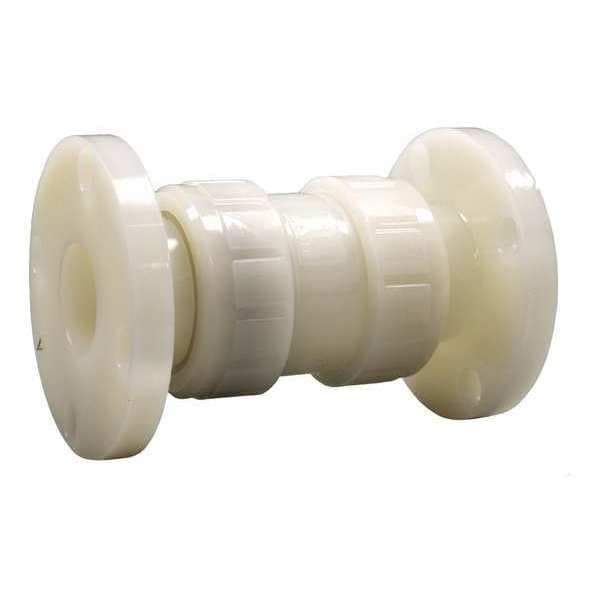

Ball Check Valve, Inline, 2 in, Flanged x Flanged, PVDF Body, 1 psi Cracking Pressure
Mfr # 1233020
Zoro # G6162147
product price:Â
$
1,762.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
2in
Connection Type
Flanged x Flanged
Body Material
PVDF
Sub-Category
PVC
Max. Pressure
150 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1233020
- Zoro #
- G6162147
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Pipe Size
- 2in
- Length
- 8 7/16 in
- Pipe or Tube Size - Check Valves
- 2 in
- Overall Height
- 4 11/64 in
- Size
- 2"
- Width
- 6"
- Overall Length
- 8.43 in
- Pipe or Tube Size
- 2 in
- Connection Size - Side 2
- 2 in
- Connection Size - Side 1
- 2 in
- Nominal Valve Size
- 2 in
- Wire Rope Length
- 8.43 in
Description
ASAHI 1233020 is a 2 in ball check valve with an inline body and flanged x flanged connections. It uses a free-moving ball check mechanism for one-direction flow applications and reverse-flow restriction, for use with compatible chemicals and water within the product specifications. The valve has a PVC body with PVDF material of construction, a 1 psi cracking pressure, and can be mounted in horizontal or vertical piping.
Key Features:
- 2 in nominal valve size with 2 in flange connections on both sides
- Inline ball check design with single flow path
- For media: compatible chemicals and water
- Body material: PVC; material of construction: PVDF
- Seal material: FKM; seat material: FKM
- ANSI flange class: Class 150
- Cv: 130
- Maximum operating pressure: 150 psi
- Maximum water pressure: 150 psi at 120 degrees F
- Operating temperature range: 30 degrees F to 120 degrees F
- Overall length: 8.43 in; overall height: 4 11/64 in; width: 6 in
- NSF 61
- Standards: ASTM D1784 Cell Class 12454A
