  5. Industrial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location

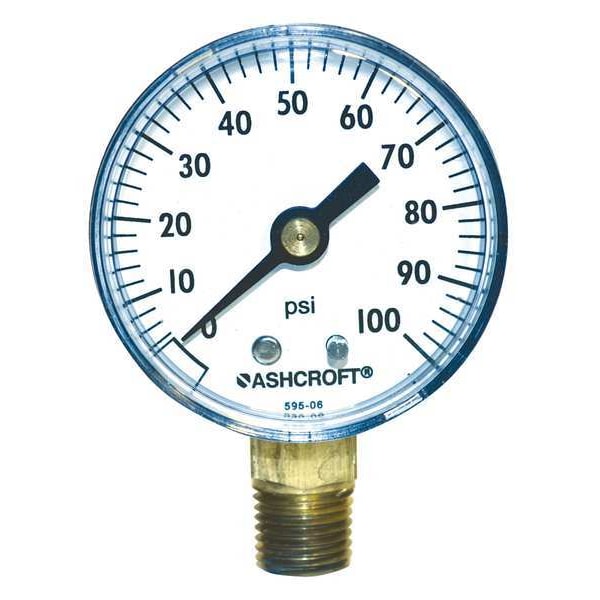

Ashcroft Industrial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location 20W1005PH02L100# - main
Shop ASHCROFT

Industrial Pressure Gauge, 0 to 100 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 20W1005PH02L100#

  • Zoro # G8515936

product price:  $12.25
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
20W1005PH02L100#
Zoro #
G8515936
UPC #
-
Country of Origin
Brazil

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Length
2.87"
Nominal Dial Size
2 in
Manufacturer Warranty Length
1 yr
Case Diameter
2.11 in
Nominal Dial Diameter
2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
General Purpose
Gauge Case Material
ABS Plastic
Series
1005P
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
2
Calibration Certificate Included
No
Smallest Graduation
2 psi
Graduations
10 psi
Gauge Application
General-Purpose Case
Gauge Special Options
PowerFlex(TM) Movement
Gauge Primary Range Numbered Graduations
10
Case Color
Black
Case Material
ABS Plastic
Socket Material
Brass
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Freeze Resistant Movement
No
Scale Type
Single
Gauge Case Liquid
None
Pressure Gauge Type
Industrial Pressure Gauge
Process Connection Gender
Male
Non-Sparking
No
Field Fillable
No
Removable Bezel
No
Sensor Material
Bronze
Cleaned for Oxygen Service
No
Includes Vent Plug
No
Includes Mounting Hardware
No
Vibration Resistance
Liquid-Filled
Compatible Process Media
Water
Pressure Range Type
Pressure
Accuracy Grade
ASME B40.100 Grade B
Dial Color
White
Dry Dampening Feature
None
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Includes Calibration Certificate
No
Accuracy Scale
Mid-Scale
Maximum Pressure
100 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Case Liquid
None

Description

Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 100, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
