  9. Pressure Gauge, 0 to 1 In H2O

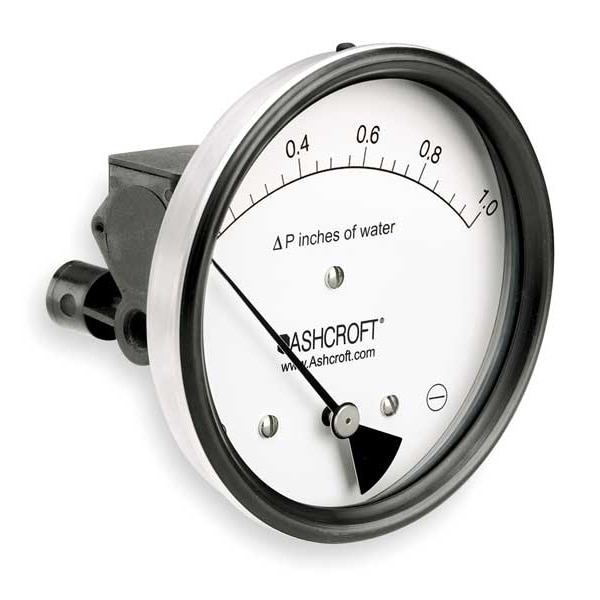

Ashcroft Pressure Gauge, 0 to 1 In H2O 451134EDRQMXCYLM1IWD - main

Pressure Gauge, 0 to 1 In H2O

  • Mfr # 451134EDRQMXCYLM1IWD

  • Zoro # G0244386

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3.00%
Process Connection Type
NPT
Process Connection Size
1/8 in
Series
1134
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
451134EDRQMXCYLM1IWD
Zoro #
G0244386
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Nominal Dial Size
4 1/2 in
Gauge Nominal Dial Size
5 in
Differential Gauge Connection Size
1/8 in
Manufacturers Warranty Length
5 yr
Manufacturer Warranty Length
5 yr
Case Diameter
4 11/16 in
Case Depth
3.76 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-3.00%
Process Connection Type
NPT
Series
1134
Process Connection Gender
Female
Application
Blower Performance, Clean Rooms, Collector or Bag Filter Monitoring, Filtration Monitoring, Flow Measurement
Process Connection Location
Dual In-Line or Back
Housing Material
Glass Filled Nylon
Pressure Range
0 to 1 in wc
Sensor Type
Diaphragm
Differential Pressure Range Value
0 to 1
Gauge Connection Location
Back and Side
Gauge Accuracy
+/-3%
Gauge Primary Range Smallest Graduation
0.02
Rated Total Pressure
35 psi
Scale Type
Pressure
Body Material
Glass Filled Nylon
Differential Pressure Range Units
in wc
Includes
Instructions
Basic Gauge Wetted Parts
PTFE / Buna-N
Differential Pressure Range
0 to 1 in wc
Gauge Operating Temp. Range
0 Degrees to 140 Degrees F
Basic Gauge Case Material
Plastic
Differential Pressure Gauge Type
Differential Pressure Gauge
Seal Material
Buna-N
Dial Material
Stainless Steel
Diaphragm Material
Buna-N
Piston Material
PTFE
Differential Gauge Connection Type
FNPT
Case Material
Stainless Steel
Socket Material
Buna-N/Glass Filled Nylon
Lens Material
Glass
Case Shape
Round
Non-Sparking
No
Gauge Case Material
Stainless Steel
Dial Color
White
Ambient Operating Temperature Range
0 Degrees to 140 Degrees F
Adjustable Set Points
Yes
Movement Type
Rotary
IP/NEMA Rating
IP65
Includes Calibration Certificate
No
Panel-Mountable
Yes
Hazardous Location Rating
Not Rated
Maximum Working Static Pressure
35 psi
Compatible Process Media
Cleanroom, Gases in Glovebox, Isolation Room
Includes Vent Plug
No
Sensor Material
Buna-N
Mounting Hardware Included
Flush-Mount, Mounting Bracket, Surface Plate
Blowout Safety Back
No
Panel Mount Characteristics
Flush Mounting Clamp
Process Temperature Range
32 Degrees to 175 Degrees F
O-Ring Material
Buna-N
Pressure Gauge Type
Differential Pressure Gauge
Includes Mounting Hardware
No
Removable Bezel
No
Primary Scale Minor Graduations
0.02
Process Media Temperature - Maximum
175 Degrees F
Pressure Scale Minor Graduations
0.02
Pressure Measurement - Maximum
1 in wc
Operating Temperature - Minimum
0 Degrees F
Process Media Temperature - Minimum
32 Degrees F
IP Rating
IP65
Operating Temperature - Maximum
140 Degrees F
Number of Switches
0
Pressure Measurement - Minimum
0 in wc
Product Type
Differential Pressure Gauge
Working Static Pressure - Maximum
35 psi

Description

Differential Pressure Gauge, Pressure Range 0 To 1 In WC, Accuracy +/-2%, Pressure Range Minor Div 0.02 In WC, Rated Total Pressure 35 PSI, Gage Connection 1/8 In NPT, Dial Size 4.5 In, Compatible With Air And Non-Combustible Gas, Ambient Operating Range 0 to 170 Deg F, Includes Instructions
