  11. Pressure Gauge, 0 to 80 psi, 1/4 in MNPT, Plastic, Black

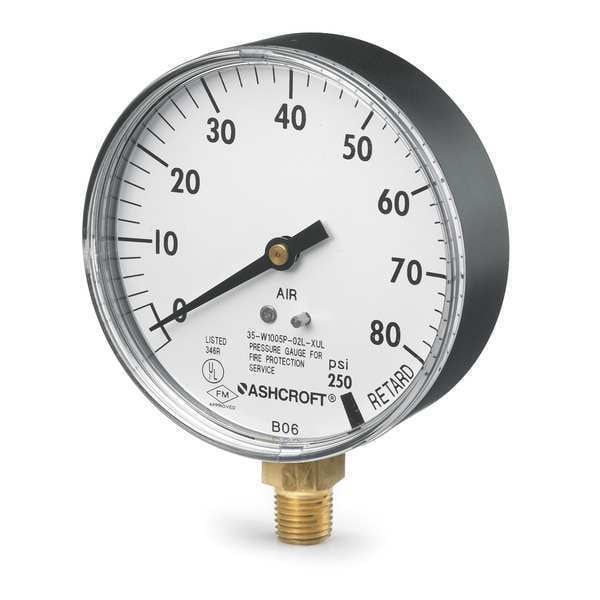

Ashcroft Pressure Gauge, 0 to 80 psi, 1/4 in MNPT, Plastic, Black 35 1005P XUL 02L 80# - main

Pressure Gauge, 0 to 80 psi, 1/4 in MNPT, Plastic, Black

  • Mfr # 35 1005P XUL 02L 80#

  • Zoro # G1893577

product price: $17.35
/ea

Key Features

Material
ABS
Gauge Primary Range Numbered Graduations
20
Gauge Primary Range Values
0 to 80
Gauge Application
Fire Sprinkler Systems
Gauge Case Material
ABS Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
35 1005P XUL 02L 80#
Zoro #
G1893577
UPC #
662876269921
Country of Origin
Brazil

Dimensions

Dial Size (In.)
3-1/2
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Gauge Nominal Dial Size
3 1/2 in
Diameter
3.70"
Case Diameter
3.7 in
Case Depth
1.14 in
Nominal Dial Size
3 1/2 in
Process Connection Size
1/4 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Fire Sprinkler System Pressure Gauge
Material
ABS
Gauge Primary Range Numbered Graduations
20
Gauge Primary Range Values
0 to 80
Gauge Application
Fire Sprinkler Systems
Gauge Case Material
ABS Plastic
Gauge Sensor Material
Phosphor Bronze
Range
0 to 80 psi
Liquid Filled
No
Basic Gauge Lens Material
Plastic
Calibration Certificate Included
No
Basic Gauge Sensor Material
Bronze
Gauge Lens Material
Polycarbonate
Gauge Socket Material
Brass
Gauge Accuracy
+/-3-2-3%
Series
1005P
Pressure and Vacuum Gauge Type
Pressure Gauge
Gauge Primary Range Units
psi
Basic Gauge Socket Material
Brass
Connection Location
Lower
Color
Black
Operating Temp. Range
-40 Degrees to 150 Degrees F
Case Color
Black
Graduations
20 psi
Smallest Graduation
2 psi
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Smallest Graduation
2
Gauge Panel Mountable
No
Max. Pressure (PSI)
80
Gauge Case Color
Black
Accuracy
+/-3-2-3%
Basic Gauge Case Material
Plastic
Basic Gauge Wetted Parts
Brass / Bronze
Socket Material
Brass
Application
Fire Sprinkler Systems
Case Material
ABS Plastic
Standards
ASME B40.100, CRN Registered, Factory Mutual, UL-393 for USA and Canada
Process Connection Location
Bottom
Dial Color
White
Lens Material
Polycarbonate
Primary Scale Minor Graduations
2
Movement Material
Brass
Sensor Type
Bourdon Tube
Pointer Color
Black
Hazardous Location Rating
Not Rated
Sensor Material
Phosphor Bronze
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Removable Bezel
No
Process Connection Gender
Male
Process Temperature Range
-40 Degrees to 150 Degrees F
Pressure Range Type
Pressure
Case Construction
ABS Plastic
Reads Head Pressure
No
Dial Face Material
Aluminum
Primary Scale Units
psi
Primary Pressure Range
0 to 80
Primary Scale Numeric Increments
20
IP/NEMA Rating
Not Rated
Freeze Resistant Movement
No
Process Connection Type
NPT
Scale Type
Single
Accuracy Grade
ASME B40.100 Grade B
Pointer Material
Aluminum
Pressure Gauge Type
Commercial Pressure Gauge
Compatible Process Media
Air
Bezel Mounting Type
No Bezel
Accuracy Scale
Mid-Scale
Liquid-Filled Case
No
Includes Calibration Certificate
No
Compatible with Brand
Universal
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
80 psi
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Field Fillable
No

Description

Fire Sprinkler System Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 80, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge, Liquid-Filled Case No, Compatible Process Media Air
