  5. Pressure Gauge with Diaphragm Seal, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

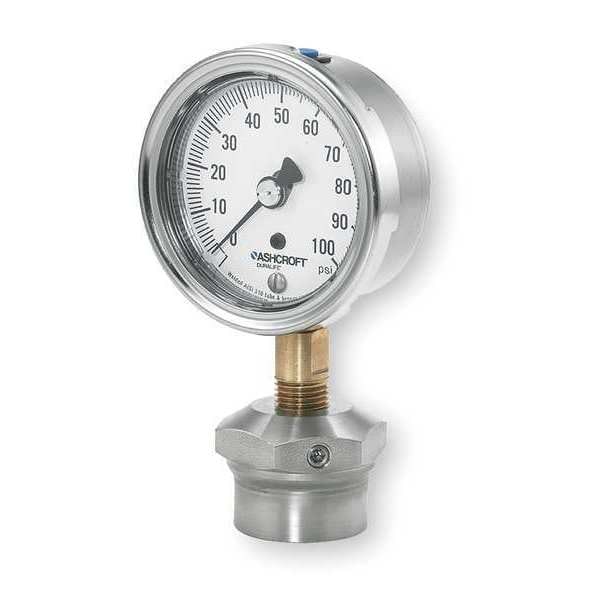

Ashcroft Pressure Gauge with Diaphragm Seal, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location 251009AW02L/310SSLXCG100 - main

Pressure Gauge with Diaphragm Seal, 0 to 100 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # 251009AW02L/310SSLXCG100

  • Zoro # G0029574

product price:  $164.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
251009AW02L/310SSLXCG100
Zoro #
G0029574
UPC #
783156599023
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Diameter
2.75 in
Nominal Dial Size
2 1/2 in
Case Depth
1.25 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Pressure Gauge with Diaphragm Seal
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Industrial, Autoclave
Gauge Case Material
304 Stainless Steel
Series
1009; 310-315
Lens Material
Polycarbonate
Primary Pressure Range
0 to 100
Primary Scale Units
psi
IP/NEMA Rating
IP54 (Plug vented), IP65 (Plug closed), NEMA 4 (Plug closed)
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Filled With
Glycerin
Includes
Mini Diaphragm Seal
Gauge Primary Range Smallest Graduation
1
Case Color
Stainless Steel
Gauge Application
Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions
Smallest Graduation
1 psi
Gauge Special Options
PLUS!(TM) Performance
Graduations
10 psi
Gauge Primary Range Numbered Graduations
10
Case Material
304 Stainless Steel
Socket Material
Aluminum Bronze
Connection Type
MNPT
Wetted Materials
Brass / Stainless Steel
Standards
CRN Registered, RoHS
Includes Calibration Certificate
No
Sensor Type
Bourdon Tube
Seal Fill Liquid
Glycerin
Clog Resistant
No
Dry Dampening Feature
None
Field Fillable
Yes
Seal Compatible Process Media
Water; Oil; Natural Gas and Other Combustible Gases; Liquids and Gases Compatible with Brass; Liquids and Gases Compatible with Stainless Steel; Potable Water
Pointer Material
Aluminum
Seal Diaphragm Material
316L Stainless Steel
Primary Scale Minor Graduations
1
Movement Type
Glass Filled Polyester Segment
Burst Pressure
1,100 psi
Removable Bezel
No
Includes Vent Plug
Yes
Diaphragm Seal Type
Welded
Sensor Material
316L Stainless Steel
Seal External Material
316L Stainless Steel
Diaphragm Seal Process Connection
Threaded
Dial Color
White
Adjustable Pointer
No
Seal Maximum Working Pressure
2,500 psi
Accuracy Scale
Full Scale
Includes Mounting Hardware
No
Pressure Range Type
Pressure
Primary Scale Numeric Increments
10
Seal Lower Housing Material
316L Stainless Steel
Pressure Gauge Type
Industrial Pressure Gauge with Diaphragm Seal
Primary Pressure Scale Color
Black
Seal Process Temperature Range
0 Degrees to 400 Degrees F
Movement Material
304 Stainless Steel
Accuracy Grade
ASME B40.100 Grade 1A
Pointer Color
Black
Process Connection Gender
Male
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F, -40 Degrees to 93 Degrees C
Scale Type
Single
Cleaned for Oxygen Service
No
Process Temperature Range
-40 Degrees to 250 Degrees F
Vibration Resistance
Field-Fillable
Freeze Resistant Movement
No
Case Construction
Welded
Gauge Case Liquid
None
Maximum Pressure
100 psi
Diaphragm Seal Material
316L Stainless Steel
Operating Temperature Range
-40 Degrees to 150 Degrees F
Process Media Temperature - Maximum
250 Degrees F
Case Liquid
None
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
Seal Process Media Temperature - Maximum
400 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
100 psi
Seal Working Pressure - Maximum
2,500 psi
IP Rating
IP65
Seal Process Media Temperature - Minimum
0 Degrees F
Primary Scale Color
Black
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
4X

Description

Pressure Gauge, Gauge Type With Mini Diaphragm Seal, Dial Size (In.) 2-1/2, Range 0 to 100 psi, Connection Size 1/4" NPT, Connection Location Lower, Smallest Graduation (PSI) 1, Accuracy (%) +/-1, Case Material Polished Stainless Steel, Socket Material Brass, Tube Material 316 Stainless Steel, Filled With Glycerin (In Seal), Lens Material Polycarbonate, Ring Material Polished Stainless Steel, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Series 1009AW With Mini Seal, Manufacturers War
