Ashcroft

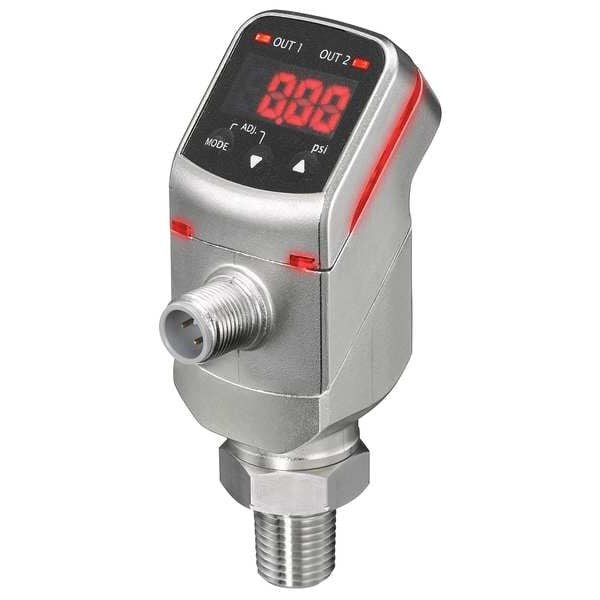

Pressure Transducer/Switch, 0 to 5000 psi
- Zoro #: G0132982
- Mfr #: GC357MO2L41EW5000#G
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Housing: Nickel Plated Aluminum
- Range: 0 to 5000 Psi
- Calibration Certificate: -
- Display Units: psi
- Manufacturers Warranty Length: 1 yr
- NEMA Rating: -
- Electrical Connections: 4 Pin M12
- Output - Transmitter: 4 to 20mA DC
$575.18
Subtotal: $575.18
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Ashcroft #GC357MO2L41EW5000#G Specifications
- Zoro #: G0132982
- Mfr #: GC357MO2L41EW5000#G
- Housing: Nickel Plated Aluminum
- Range: 0 to 5000 Psi
- Calibration Certificate: -
- Display Units: psi
- Manufacturers Warranty Length: 1 yr
- NEMA Rating: -
- Electrical Connections: 4 Pin M12
- Output - Transmitter: 4 to 20mA DC
- Shape - Transmitter: Irregular
- Wetted Materials - Transmitters: Stainless Steel
- Wetted Materials: Stainless Steel
- Overall Depth - Transmitter: 3.05 in
- Loop Resistance: Dependent on Loop Supply Voltage
- Compatible With: -
- Output: 4 to 20mA at 16 to 36VDC
- Max. Pressure (PSI): 12,500 psi
- Process Connection: 1/4" NPT Male Lower
- Operating Temp. - Transmitter: -4 Degrees to 158 Degrees F
- Accuracy - Transmitter: +/-1.00% Full Scale
- Item: Indicating Transmitter
- Electrical Connections - Transmitter: 4 Pin M12 Connector
- Overall Width - Transmitter: 1.34 in
- Display: 4 Digit LED
- Accuracy: +/-1% of Full Scale
- Transmitter Type: Pressure Transmitter
- Overall Height - Transmitter: 3.77 in
- Range Values - Transmitter: 0 to 5000
- For Use With: -
- Power Required - Transmitters: 16 to 36V DC
- Process Connection Type - Transmitter: MNPT
- Process Connection Size - Transmitter: 1/4 in
- Features: Push Button Configuration, IP67 Rating, Combined Pressure Gauge, 4 to 20mA Transducer and Switch
- Includes: Instructions
- Power Required: 16 to 36VDC
- Wiring Entry - Transmitter: None
- Display - Transmitter: 4 Digit LED
- Thermal Error: +/-0.1% Full Scale
- Connection Location - Transmitter: Bottom
- Operating Temp.: -4 to 158 F
- Range Units - Transmitter: psi
- Overall Width: 1.34 in
- Housing Height: 2 13/16 in
- Intrinsically Safe: No
- Maximum Pressure: 5,000 psi
- Overall Height: 3.77 in
- Pressure Range: 0 psi to 5,000 psi
- Process Connection Location: Back
- Burst Pressure: 5x Range
- Shape: Irregular
- Manufacturer Warranty Length: 1 yr
- Primary Scale Units: psi
- Diameter: 2.28 in
- Process Connection Gender: Male
- Explosion/Fire Proof: No
- Overall Length: 1.34 in
- Process Connection Size: 1/4 in
- For Use With Media Type: Liquid, Gas
- Minimum Operating Temperature: -4 Degrees F
- Number of Wires: 4
- Display Screen Type: LED
- Overpressure: 1.5x Range
- Process Connection Type: NPT
- Housing Length: 1 5/16 in
- Display Type: Digital
- Calibration Certificate Included: No
- Pressure Units: psig
- Fitting Material: 17-4PH Stainless Steel, 316 Stainless Steel
- Enclosure Rating: IP67
- Standards: CE, RoHS
- Electrical Connection: 4-Pin M12 Connector
- Storage Temperature Range: -4 Degrees F to 158 Degrees F
- Maximum Operating Temperature: 158 Degrees F
- Response Time: 5 msec
- Minimum Pressure: 0 psi
- Weight: 150 g
- Series: GC35
- IP Rating: IP67
- Housing Material: Aluminum
- Country of Origin (subject to change): Japan
Description
Indicating Transmitter, Output 4 to 20 mA DC; (1) Switch, Process Connection Gender Male, Process Connection Location Back, Process Connection Size 1/4 in, Maximum Pressure 5,000 psi, Minimum Pressure 0 psi, Accuracy +/-1 Percent of Full Scale, IP Rating IP67, NEMA Rating -, Number of Wires 4, Display Units psi, Fitting Material 17-4PH Stainless Steel, 316 Stainless Steel, Display Screen Type LED, Safety Rating -, Series GC35, Display Type Digital, Electrical Connections 4-Pin M12 Connector
