  5. Process Pressure Gauge, 0 to 160 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location

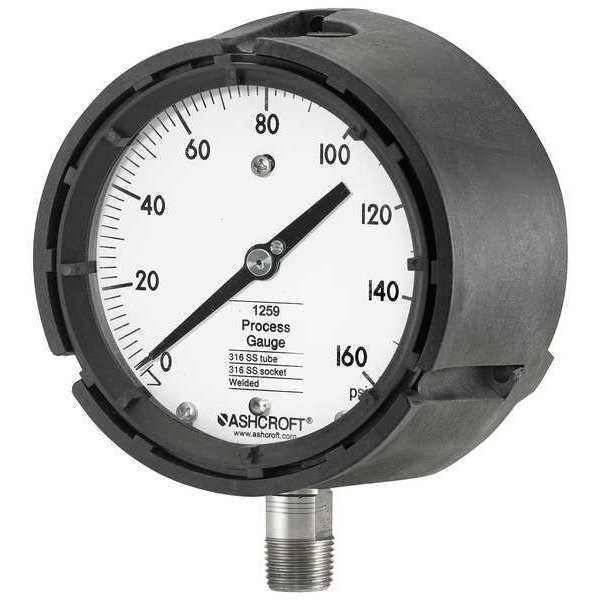

Ashcroft Process Pressure Gauge, 0 to 160 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location 451259SD04L160# - main

Process Pressure Gauge, 0 to 160 psi, 4 1/2 in Dial, 1/2 in NPT, Bottom Location

  • Mfr # 451259SD04L160#

  • Zoro # G3292536

product price:  $83.25
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/2 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
451259SD04L160#
Zoro #
G3292536
UPC #
783029584767
Country of Origin
Brazil

Dimensions

Process Connection Size
1/2 in
Dial Size (In.)
4 1/2 in
Case Depth
3.36 in
Nominal Dial Size
4 1/2 in
Case Diameter
5.81 in
Bolt Circle Diameter
5.37 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Process Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Chemical Industries, Refrigeration, Mining, Oil and Gas Industry, Power Industries, Turbines and Compressors, Water Purification or Irrigation, Water Pressure Testing
Gauge Case Material
Polybutylene Terephthalate
Series
1259
Lens Material
Glass
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
Not Rated
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
Yes
Calibration Certificate Included
No
Gauge Application
Refineries, Chemical, Petrochemical Plants and Offshore Oil Rigs, Water and wastewater Pressure Control, Pulp and Paper, Mining and Metals, Equipment Skids, Specialized OEM Equipment
Smallest Graduation
20 psi
Gauge Primary Range Smallest Graduation
20
Graduations
20 psi
For Use With
Media Compatible with 316L Stainless Steel
Gauge Primary Range Numbered Graduations
20
Case Color
Black
Gauge Mounting Method
Surface
Socket Material
316L Stainless Steel
Case Material
PBT, Polycarbonate
Standards
ASME, CE, CRN
Connection Type
MNPT
Wetted Materials
Stainless Steel
Panel Mount Characteristics
3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle
Non-Sparking
No
Gauge Case Liquid
None
Burst Pressure
1,400 psi
Includes Vent Plug
No
Process Connection Gender
Male
Case Construction
Solid Front with Pressure Relief Back
Accuracy Scale
Full Scale
Dry Dampening Feature
None
Sensor Material
316L Stainless Steel
Pressure Range Type
Pressure
Sensor Type
Bourdon Tube
Freeze Resistant Movement
No
Includes Calibration Certificate
No
Vibration Resistance
None
Field Fillable
No
Scale Type
Single
Primary Scale Numeric Increments
20
Cleaned for Oxygen Service
No
Includes Mounting Hardware
No
Bezel Material
Polybutylene Terephthalate
Pointer Material
Aluminum
Ambient Operating Temperature Range
-20 Degrees to 200 Degrees F (-29 Degrees to 93 Degrees C)
Pointer Characteristics
Micrometer Adjustable
Process Temperature Range
-20 Degrees to 250 Degrees F
Pressure Gauge Type
Process Pressure Gauge
Compatible Process Media
Chemical and Petrochemical, Metals, Natural Gas and LNG, Oil and Gas, Water and Wastewater
Removable Bezel
No
Primary Scale Minor Graduations
20
Dial Color
White
Accuracy Grade
ASME B40.100 Grade 2A
Maximum Pressure
160 psi
Pointer Color
Black
Operating Temperature Range
-50 Degrees to 150 Degrees F
Process Media Temperature - Maximum
250 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Operating Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Process Media Temperature - Minimum
-20 Degrees F
Operating Temperature - Minimum
-20 Degrees F
Case Liquid
None
Compatible with Brand
Universal

Description

Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Polybutylene Terephthalate, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Process Pressure Gauge
