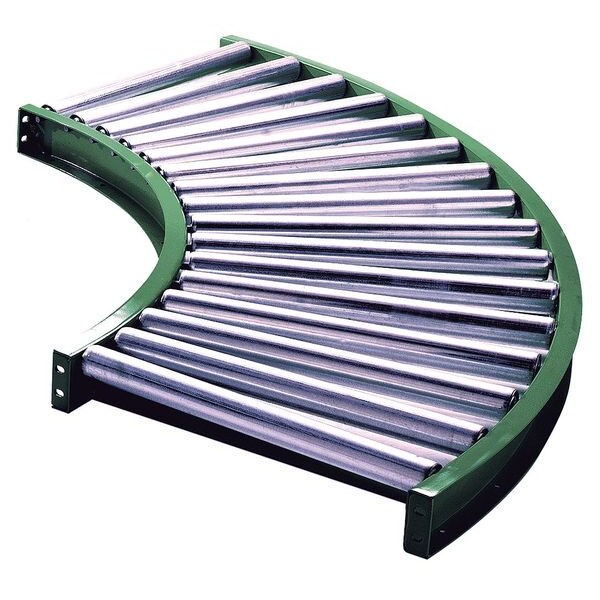

Ashland Conveyor Roller Conveyor, 90 Curve, 10BF 10F90KG03B10 - main

Roller Conveyor, 90 Curve, 10BF

  • Mfr # 10F90KG03B10

  • Zoro # G6820545

product price: $435.99
/ea
Free Shipping & Returns

Key Features

Roller Dia.
1 15/16 in
Roller Gauge
16 ga
Conveyor Roller Material
Steel
Duty Rating
Medium-Duty
Bearings
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10F90KG03B10
Zoro #
G6820545
UPC #
-
Country of Origin
United States

Dimensions

Roller Dia.
1 15/16 in
Overall Width
12 3/4 in
Inside Radius
30 in
Frame Height - Conveyors
3 1/2 in
Outside Radius
41 3/8 in
Between Frame Width
10 in

Details

Item
Roller Conveyor
Roller Gauge
16 ga
Conveyor Roller Material
Steel
Duty Rating
Medium-Duty
Bearings
Ball
Design
Bolted
Finish
Powder Coated
Frame Finish
Powder Coated
Frame Capacity per Foot on 5-Ft. Centers
600 lb.
Roller Material
16 ga. Steel
Center to Center Roller Spacing
3"
Rollers for Curved Section
16
Frame Finish/Coating
Powder Coated
Conveyor Frame Type
Rigid
Bed Material
Steel
Roller Bearing Type
Ball Bearing
Number of Rollers
16
Frame Material
Steel
Load Capacity @ 10 ft. Centers
120 lb/ft
Maximum Load Capacity
600 lb/ft (5 ft Supports)
Load Capacity @ 5 ft. Centers
600 lb/ft
Roller Spacing
3 in
Roller Position
Set High on 3" Centers
Conveyor Connection Type
Bolt-On
Roller Set Positioning
Set High
Frame Shape
90 Degrees Curved

Description

Item Roller Conveyor, Medium-Duty, Rigid, 90 Degrees Curved Frame Shape, Inside Radius 30 in, Outside Radius 41 3/8 in, Roller Dia. 1 15/16 in, Between Frame Width 10 in, Overall Width 12 3/4 in, 3 in Roller Spacing, Frame Material Steel
