  9. Roller Conveyor, 90 Curve, 13BF

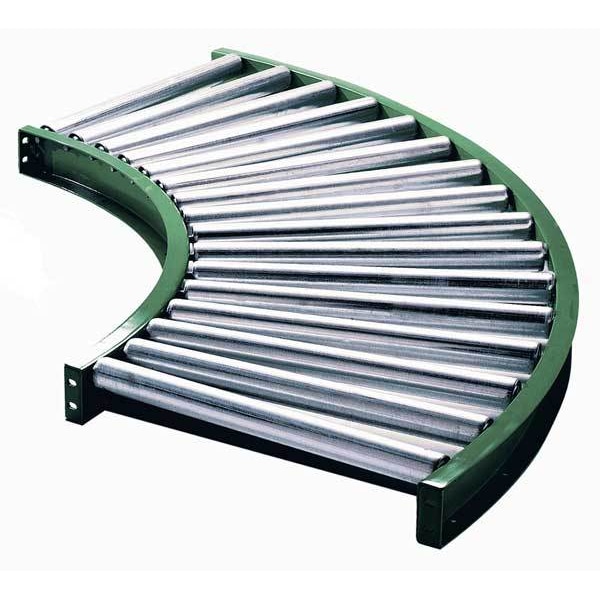

Ashland Conveyor Roller Conveyor, 90 Curve, 13BF 10F90KG03B13 - main

Roller Conveyor, 90 Curve, 13BF

  • Mfr # 10F90KG03B13

  • Zoro # G9901884

product price: $480.99
/ea
Item requires special delivery charges. A $65.00 per item surcharge will be applied.

Key Features

Roller Dia.
1 15/16 in
Roller Gauge
16 ga
Conveyor Roller Material
Steel
Duty Rating
Medium-Duty
Bearings
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10F90KG03B13
Zoro #
G9901884
UPC #
-
Country of Origin
United States

Dimensions

Roller Dia.
1 15/16 in
Overall Width
15 3/4 in
Inside Radius
30 in
Frame Height - Conveyors
1 3/8 in
Outside Radius
44 3/8 in
Between Frame Width
13 in

Details

Item
Roller Conveyor
Roller Gauge
16 ga
Conveyor Roller Material
Steel
Duty Rating
Medium-Duty
Bearings
Ball
Maximum Load Capacity
600 lb/ft (5 ft Supports)
Roller Material
16 ga. Steel
Roller Bearing Type
Ball Bearing
Conveyor Connection Type
Bolt-On
Load Capacity @ 10 ft. Centers
120 lb/ft
Frame Finish
Powder Coated
Roller Position
Set High on 3" Centers
Conveyor Frame Type
Rigid
Finish
Powder Coated
Center to Center Roller Spacing
3"
Frame Capacity per Foot on 5-Ft. Centers
600 lb.
Frame Material
Steel
Rollers for Curved Section
16
Roller Set Positioning
Set High
Number of Rollers
16
Load Capacity @ 5 ft. Centers
600 lb/ft
Frame Shape
90 Degrees Curved
Bed Material
Steel
Design
Bolted
Roller Spacing
3 in
Frame Finish/Coating
Powder Coated

Description

Item Roller Conveyor, Medium-Duty, Rigid, 90 Degrees Curved Frame Shape, Inside Radius 30 in, Outside Radius 44 3/8 in, Roller Dia. 1 15/16 in, Between Frame Width 13 in, Overall Width 15 3/4 in, 3 in Roller Spacing, Frame Material Steel
