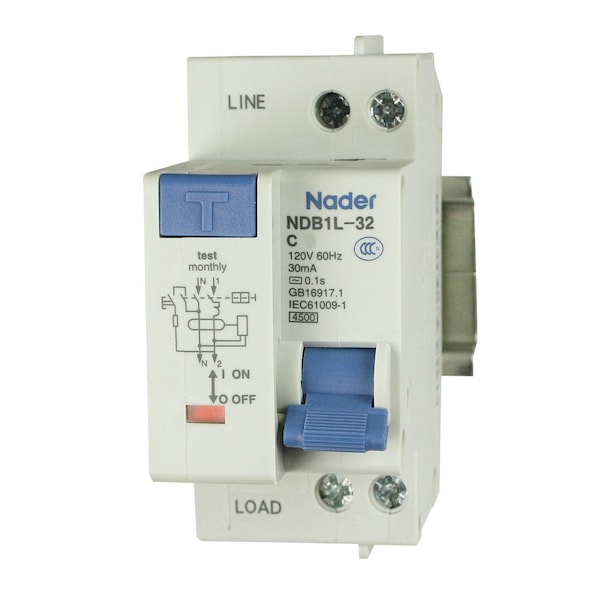

Circuit Breaker, NDB1L-32C Series, 6A, 2 Pole, 120V AC, 4.5kA, C Curve
Mfr # NDB1L-32C-6-120V
Zoro # G511376226
CAD Available
product price:Â
$
36.79
/ea
Key Features
CAD Drawing
Series
NDB1L-32C
Amps
6 A
Number of Poles
2
AC Voltage Rating
120V AC
Circuit Breaker Type
Ground Fault Circuit Interrupter
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NDB1L-32C-6-120V
- Zoro #
- G511376226
- UPC #
- 813101023430
- Country of Origin
- China
Dimensions
- Width
- 36 mm
- Depth
- 69 mm
- Height
- 78 mm
Details
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- NDB1L-32C
- Amps
- 6 A
- Number of Poles
- 2
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Ground Fault Circuit Interrupter
- Circuit Breaker Mounting Style
- Surface Mount/DIN Rail
- Max. AIR Rating
- 4.5kA
- Instantaneous Trip
- Instantaneous
- Terminal Connection
- Screw
- DC Voltage Rating
- Not Rated
- Curve Type
- C
Description
NDB1L-32C-6-120V Ground Fault Circuit Breaker DIN Rail Mount, UL1053 recognized at 6 Amps at 120V AC. This 6 Amp din rail mounted GFCI circuit breaker, RCCB provides short circuit, overload protection and has a 30 mA earth leakage limit when reached safely opens the circuit and provides LED visual trip indication. This din rail GFCI breaker has a 4.5 Ka capacity. The NDB1L ground fault circuit breaker din rail mount series feature screw clamp wire terminations, a push to test button, and offers the general purpose C Trip Curve with an instantaneous trip from 5 In to 10 In.
