Assa Abloy Accentra Door Lever Lockset, Mechanical, Passage 4601LN MO 626 - main

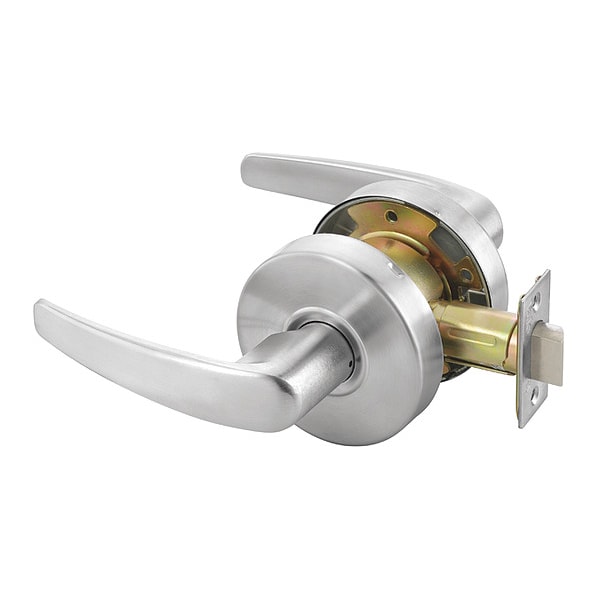

Door Lever Lockset, Mechanical, Passage

  • Mfr # 4601LN MO 626

  • Zoro # G4564770

product price: $89.85
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Lockset Function
Passage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4601LN MO 626
Zoro #
G4564770
UPC #
-
Country of Origin
Mexico

Dimensions

Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
Yale(R) 4600
Mortise / Cylindrical
Cylindrical
Item
Door Lockset
Lockset Fire Rating
3 hr
ADA Compliant
Yes
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Strike Type
Curved Lip
Number of Keys
0
Lockset Finish
Satin Chrome
Ligature Resistant
No
Application
Commercial
Hand Orientation
Non-Handed
Lockset Type
Mechanical
Lockset Style
Standard - Monroe
Locking/Unlocking Access - Inside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
Fire Rating
3 hr
Locking/Unlocking Access - Outside
Not Lockable
Lockset Function ANSI Code
F75
Trim Plate Shape
Round
Latch Bolt/Dead Bolt
Latch Bolt
Ligature-Resistant
Not Ligature-Resistant
Includes Core
Core Not Included
Visual Indicator Message
No Message
ANSI Grade
2

Description

Mechanical, Lever, Cylindrical, Lockset Function Passage, Lockset Grade 2, Lockset Finish Satin Chrome, Keyway Type None, Key Type Not Keyed, Standards UL Listed, ADA Compliant Yes, Lockset Fire Rating 3 hr., Backset 2-3/4 In., Ligature Resistant No, Item Door Lever Lockset, Number of Pins 6, Series Yale(r) 4600, Strike Type ANSI
