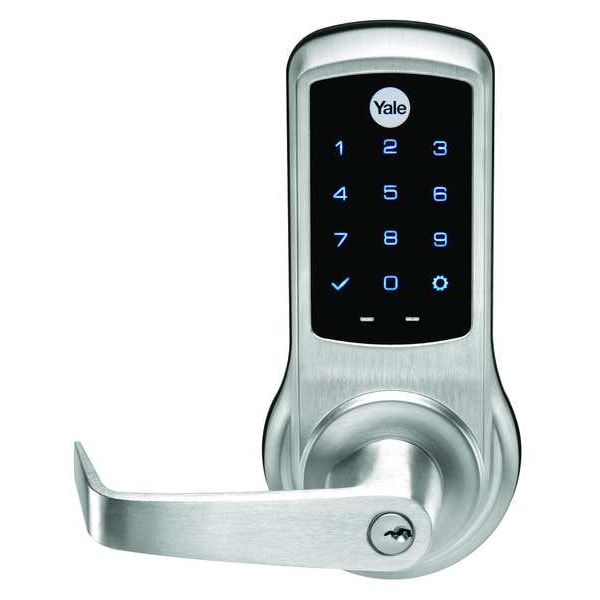

Electronic Keyless Lock, Touch Screen

  • Mfr # AU-NTB622-N626

  • Zoro # G6388859


product price: $649.99
/ea
Free Shipping & Returns

Key Features

Series
NTB600
Handle Type
Lever
Max. User Codes
500
Door Thickness
1-3/4 in
Function
Entry with Key Override
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AU-NTB622-N626
Zoro #
G6388859
UPC #
00049306846882
Country of Origin
China

Dimensions

Door Thickness
1-3/4 in
Outside Width
3 3/4 in
Outside Height
8 1/8 in
Outside Depth
3 5/16 in
Latch Length
1/2 in
Inside Width
3 3/4 in
Latch Front Size
2-1/4 in x 1-1/8 in
Inside Depth
3 5/16 in
Inside Height
8 1/8 in
Overall Width
3 3/4 in
Overall Height
8 1/8 in
Overall Depth
3 5/16 in
Door Thickness - Maximum
1 3/4 in
Latch Front Length
2 1/4 in
Latch Front Width
1 1/8 in
Door Thickness - Minimum
1 3/8 in

Details

Item
Electronic Keyless Lock
Series
NTB600
Handle Type
Lever
Max. User Codes
500
Function
Entry with Key Override
Access Method
Keypad
Case Material
Metal
For Use With
Access to Airport Aprons, Management Offices, Restrooms, Staff Lounges, Storage Closets
Mounting Style
Cylindrical
Lock Material
Metal
Product Type
Electronic Keyless Lock
Number of Keys
2
Includes
(4) AA Batteries, 9V Battery, Handle Removal Tool, Hex Wrench, Gasket Seal
Bolt Throw
1/2 in
ADA Compliant
Yes
Finish
Satin Chrome
Standards
ANSI/BHMA Grade 1, ISO 9001
Operating Temp. Range
-40 Degrees to 140 Degrees F
Event Audit Trail
No
Hand
Nonhanded
IP Rating
Not Rated
Timed Entry Allowance
1 to 180 sec
Backset
2 3/4 in
Battery Life
20,000 Cycles
Weather Resistant
Yes
Max. Proximity Range
At Lock
Electrical/Mechanical
Electrical
Power Source
(4) AA Batteries
Keypad Material
Membrane
Key Override Options
Mechanical
Fire Rating
3 hr
Grade
1
Network Interface
None
Voltage
9 V
Features
Lockout Mode, Low Battery Indicator, Voice Directed Programming
Hand Orientation
Non-Handed
User Codes - Maximum
500
Cylinder Core Type
Small Format Interchangeable Core Cylinder
ANSI Grade
1
Includes Core
Core Included
Temperature - Minimum
-40 Degrees F
Lockset Type
Electrical/Mechanical
Includes Hardware
Hardware Included
Locking/Unlocking Access - Inside
Not Lockable
Locking/Unlocking Access - Outside
Keyway
Lockset Material
Metal
Lockset Function
Entrance
Temperature - Maximum
140 Degrees F
ANSI/BHMA Finish
Satin Chromium-Plated
Lockset Handle Type
Lever
Operation Type
Push Button

Description

Electronic Keyless Lock, Function Entry with Key Override, Access Method Keypad, Mounting Style Cylindrical, Lock Material Metal, Finish Satin Chrome, Series NTB600, Handle Type Lever, Door Thickness 1-3/4 in, Key Override Options Mechanical, Hand Nonhanded, Network Interface None, Outside Height 8 1/8 in, Outside Width 3 3/4 in, Outside Depth 3 5/16 in, Keypad Material Membrane, Power Source (4) AA Batteries, Battery Life 20,000 Cycles, Operating Temp. Range -40 Degrees to 140 Degrees F
