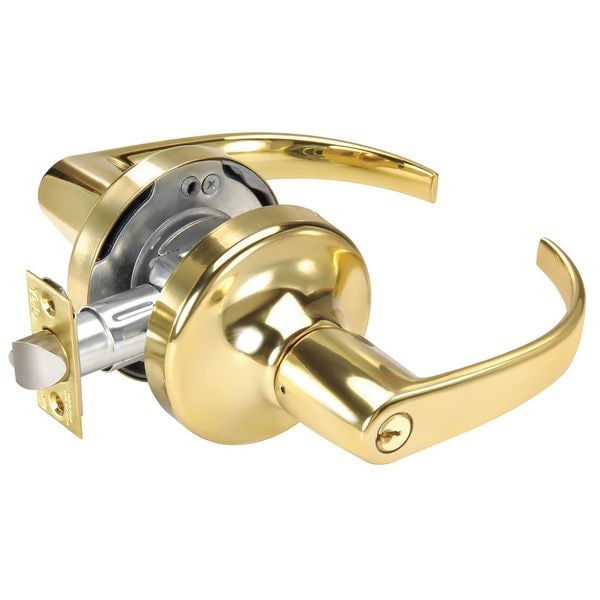

Assa Abloy Accentra Lever Lockset, Mechanical, Classroom PB5308LN x 605 - main

Lever Lockset, Mechanical, Classroom

  • Mfr # PB5308LN x 605

  • Zoro # G0941044

product price: $167.99
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PB5308LN x 605
Zoro #
G0941044
UPC #
094706217893
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Width
1 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Classroom
Lockset Grade
2
Style
5300LN Pacific Beach
Lockset Finish
Bright Brass
Keyway Type
Yale Para
Key Type
Keyed Different
Number of Keys
2
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Series
5300LN
Handle Material
Handle Cast Steel, Rose Cold Forged Brass
Strike Dim.
2-3/4 in x 1-1/8 in
Backset
2 3/4 in
Mortise/Cylindrical
Cylindrical
Location Type
Commercial
ADA Compliant
Yes
Strike Type
Curved Lip
Includes
Free Wheeling Lever
Item
Door Lockset
For Use With
Hollow Metal and Wood Doors
Ligature Resistant
No
Number of Pins
6
Lockset Performance Strength
Medium Duty
Lockset Fire Rating
3 hr
Grade
2
Fire Rated
3 hr.
Finish
Bright Brass
Keying
Keyed Different
Type
Cylindrical
Cylinder Core Type
Small Format Interchangeable Core Cylinder
Visual Indicator Message
No Message
Material
Handle Cast Steel, Rose Cold Forged Brass
Function
Classroom
Pins
6
Strike
2-3/4 x 1-1/8"
Cylinder
Yes
Fire Rating
3 hr
Ligature-Resistant
Not Ligature-Resistant
Lockset Type
Mechanical
ANSI/BHMA Finish
Bright Brass, Clear Coated
Lockset Function ANSI Code
F84
Lockset Style
Pacific Beach
ANSI Grade
2
Locking/Unlocking Access - Outside
Keyway
Hand Orientation
Non-Handed
Includes Core
Core Included
Application
Commercial, Industrial
Trim Plate Shape
Round
Performance Grade
1
Latch Bolt/Dead Bolt
Latch Bolt
Knob/Handle Material
Cast Steel, Cold Forged Brass
Locking/Unlocking Access - Inside
Not Lockable

Description

Lever Lockset, Cylindrical, Commercial, Pacific Beach (Curved) Style, Bright Brass Finish, Function Classroom, Grade 2, Material Handle Cast Steel, Rose Cold Forged Brass, For Door Thickness 1 3/8 to 1 3/4 In., Backset 2 3/4 In., Front Size Dimension 1 1/8 In., Crossbore Size 2 1/8 In., Keying Different, Number of Keys 2, Pins 6, 2 3/4 x 1 1/8 Strike, Required Door Thickness 1 3/8 to 1 3/4, Cylinder, Keyway Type Para, For Use With Hollow Metal an Wood Doors, Includes Free Wheeling Lever
