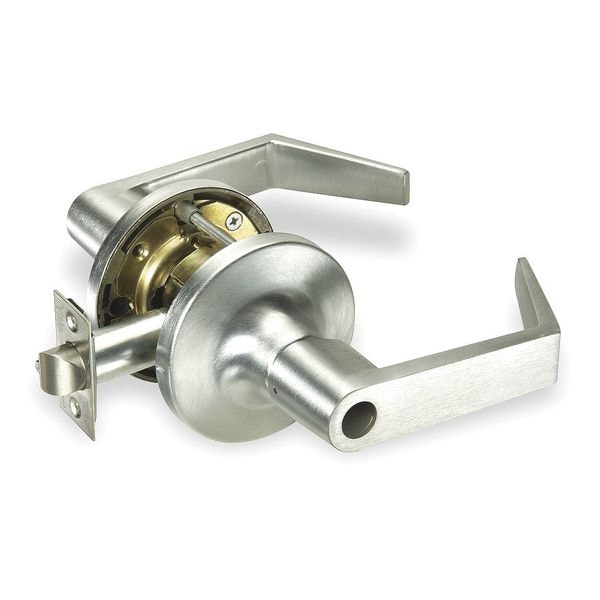

Assa Abloy Accentra Lever Lockset, Mechanical, Entrance S-AU5307LN x 626 - main

Lever Lockset, Mechanical, Entrance

  • Mfr # S-AU5307LN x 626

  • Zoro # G1227161

product price: $179.06
/ea
Free Shipping & Returns

Key Features

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Entrance
Lockset Grade
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-AU5307LN x 626
Zoro #
G1227161
UPC #
094703774634
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Door Thickness - Minimum
1 3/8 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Maximum
2 1/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in

Details

Electrical/Mechanical
Mechanical
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
Lockset Function
Entrance
Lockset Grade
2
Style
5300LN Augusta
Lockset Finish
Dull Chrome
Keyway Type
Schlage
Key Type
Keyed Different
Handle Material
Heavy Gauge Steel
Lockset Performance Strength
Medium Duty
Strike Dim.
1-1/4 in x 4-7/8 in
Lockset Fire Rating
3 hr
Backset
2 3/4 in
Strike Type
Curved Lip
Mortise/Cylindrical
Cylindrical
Ligature Resistant
No
ADA Compliant
Yes
Item
Door Lockset
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Series
5300LN
Location Type
Commercial
Finish
Dull Chrome
Number of Keys
2
Number of Pins
6
Cylinder Core Type
Large Format Interchangeable Core Cylinder
Strike
1-1/4 x 4-7/8"
Grade
2
Application
Commercial, Industrial
Fire Rated
3 hr.
Material
Heavy Gauge Steel
Type
Medium Duty
Keying
Keyed Different
Function
Entry
Visual Indicator Message
No Message
ANSI/BHMA Finish
Satin Chromium-Plated
Trim Plate Shape
Round
Latch Bolt/Dead Bolt
Latch Bolt
Ligature-Resistant
Not Ligature-Resistant
Performance Grade
1
ANSI Grade
2
Hand Orientation
Non-Handed
Includes Core
Core Included
Locking/Unlocking Access - Outside
Keyway
Lockset Type
Mechanical
Lockset Function ANSI Code
F109
Knob/Handle Material
Heavy Gauge Steel
Locking/Unlocking Access - Inside
Thumb Turn
Lockset Style
Augusta
Fire Rating
3 hr

Description

Lever Lockset, Medium Duty, Commercial, Right Angle Style, Dull Chrome Less Cylinder Finish, Function Entrance, Grade 2, Material Heavy Gauge Steel, 1-1/4 x 4-7/8 In. Strike, Required Door Thickness 1 3/8 to 1 3/4 In., Standards ANSI 117.1 Specification, UL Listed, Package Quantity 1
