Shop ASSA ABLOY ACCENTRA

Lever Lockset, Mechanical, Passage, Grade 1

  • Mfr # AUCN8801FL x 626

  • Zoro # G0996834

product price:
$
502.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Escutcheon Plate
Key Type
Not Keyed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AUCN8801FL x 626
Zoro #
G0996834
UPC #
094706218029
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 3-1/4 in
For Door Thickness
1-3/4 to 3-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
3 1/4 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Width
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Escutcheon Plate
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Mortise
Series
8800FL
Style
8800FL Augusta
Finish
Dull Chrome
Number of Keys
2
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.13, CAL FIRE, 3775-0257:0113, EPD, UL and cUL Listed
ADA Compliant
No
Strike Dim.
1-1/4 in x 4-7/8 in
Item
Door Lockset
Lockset Finish
Dull Chrome
Lockset Fire Rating
3 hr
Mortise / Cylindrical
Mortise
Strike Type
Curved Lip
Ligature Resistant
No
Fire Rated
3 hr.
Grade
1
Keying
Keyed Different
Application
Commercial
Function
Passage
Material
Brass, Stainless Steel, Zinc
Pins
6
Strike
1-1/4 x 4-7/8"
Type
Escutcheon Plate
Green Certification or Other Recognition
Environmental Transparency Through EPD (Environmental Product Declaration)
Visual Indicator Message
No Message
Case Material
Heavy Gauge Steel Body, Zinc Handle
Handle Type
Lever
Hand Orientation
Non-Handed
ANSI Grade
1
Lockset Type
Mechanical
Lockset Function ANSI Code
F01
Performance Grade
1
Latch Bolt/Dead Bolt
Latch Bolt
Fire Rating
3 hr
Lockset Style
Augusta
Locking/Unlocking Access - Outside
Not Lockable
ANSI/BHMA Finish
Satin Chromium-Plated
Locking/Unlocking Access - Inside
Not Lockable
Trim Plate Shape
Rectangular
Includes Core
Core Not Included
Ligature-Resistant
Not Ligature-Resistant

Description

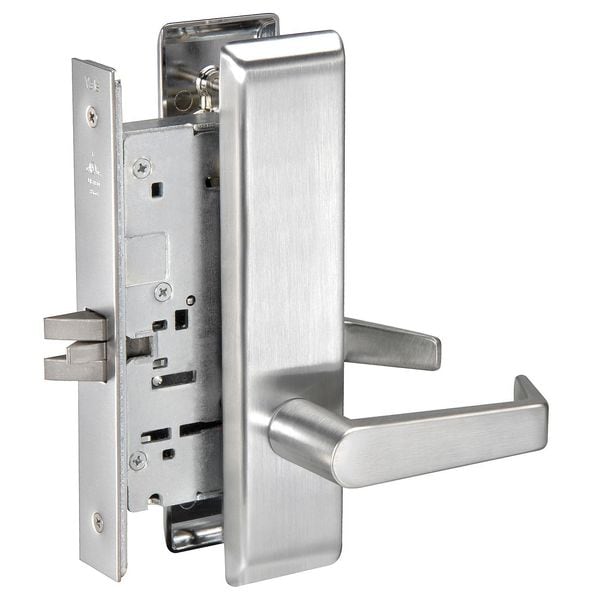

Mortise Lockset w/Escutcheon, Heavy Duty, Commercial, Augusta (Right Angle) Style, Satin Chrome (626) Finish, Function Passage, Grade 1, Material Brass, Stainless Steel, Zinc, For Door Thickness 1 3/4 to 3 3/4 In., Backset 2 3/4 In., Front Size Dimension 8 x 1 1/4 In., 1 1/4 x 4 7/8 Required Door Thickness 1 3/4, Fire Rated 3 Hours, Case Material Wrought Steel, Zinc Dichromate, For Use With Wood or Hollow Metal Doors, Includes Escutcheon Plate
