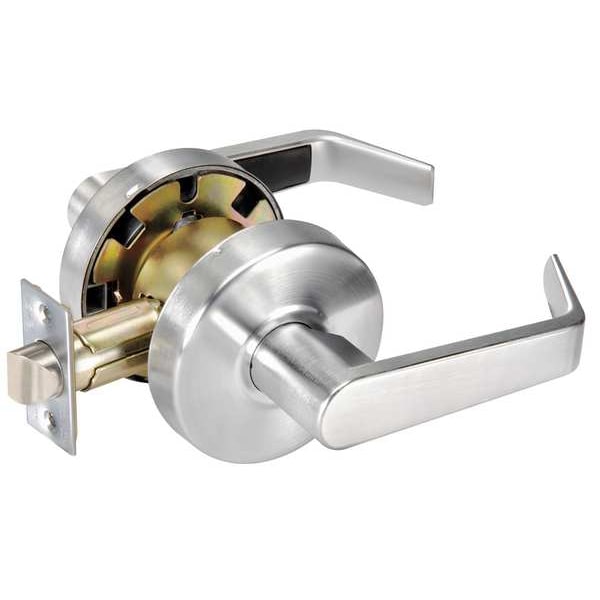

Assa Abloy Accentra Lever Lockset, Mechanical, Passage, Grade 2 AU4601LN x 626 - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # AU4601LN x 626

  • Zoro # G2349751

product price: $97.39
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal Doors with Metal Frames
Key Type
Not Keyed
Keyway Type
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AU4601LN x 626
Zoro #
G2349751
UPC #
094713922964
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Height
4 7/8 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Metal Doors with Metal Frames
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
4600LN
Style
4600LN Augusta
Finish
Satin Chrome
Ligature Resistant
No
ADA Compliant
Yes
Lockset Performance Strength
Medium Duty
Strike Dim.
2-1/4 in x 4-7/8 in
Item
Door Lockset
Strike Type
Curved Lip
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Lockset Finish
Satin Chrome
Lockset Fire Rating
3 hr
Mortise / Cylindrical
Cylindrical
Handle Material
Heavy Gauge Steel
Number of Keys
0
Keying
Unkeyed
Grade
2
Fire Rated
3 hr.
Application
Commercial
Strike
2-1/4 x 4-7/8"
Material
Heavy Gauge Steel
Function
Passage
Visual Indicator Message
No Message
Fire Rating
3 hr
ANSI/BHMA Finish
Satin Chromium-Plated
Knob/Handle Material
Heavy Gauge Steel
Lockset Type
Mechanical
Hand Orientation
Non-Handed
Locking/Unlocking Access - Inside
Not Lockable
Includes Core
Core Not Included
Lockset Function ANSI Code
F75
Locking/Unlocking Access - Outside
Not Lockable
Latch Bolt/Dead Bolt
Latch Bolt
Lockset Style
Augusta
Trim Plate Shape
Round
Performance Grade
2
Ligature-Resistant
Not Ligature-Resistant
ANSI Grade
2

Description

Lever, Medium Duty, Lockset Function Passage, Style Augusta, Handle Material Heavy Gauge Steel, Satin Chrome Finish, Strike Type Square Corner Full Lip Strike, Strike Dim. 2-1/4 In. x 4-7/8 In., Fire Rated 3 hr., Grade 2, Series 4600LN, Location Type Commercial, Backset 2-3/4 In., Required Door Thickness 1-3/8 In. to 1-3/4 In., Keyway Type PARA, Keying Unkeyed, Key Material Nickel Silver, For Use With Metal Doors with Metal Frames, Standards ADA, ANSI/BHMA A156.2 Grade 2, UL and cUL
