  13. Lever Lockset, Mechanical, Passage, Grade 2

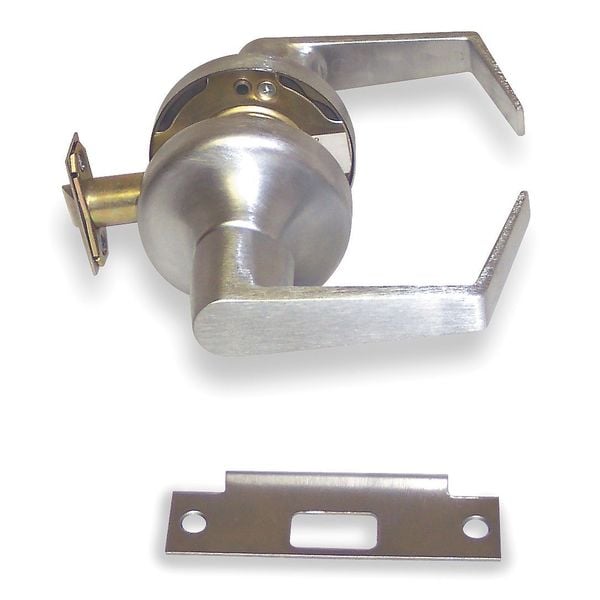

Assa Abloy Accentra Lever Lockset, Mechanical, Passage, Grade 2 AU5301LN x 626 - main

Lever Lockset, Mechanical, Passage, Grade 2

  • Mfr # AU5301LN x 626

  • Zoro # G0242961

product price: $148.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial, Industrial, Institutional
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AU5301LN x 626
Zoro #
G0242961
UPC #
049306160476
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Door Thickness - Maximum
2 1/4 in
Strike Plate Lip Length
1 1/4 in
Strike Plate Width
1 1/4 in
Door Thickness - Minimum
1 3/8 in
Strike Plate Height
4 7/8 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial, Industrial, Institutional
Lockset Function
Passage
Lockset Grade
2
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
5300LN
Style
5300LN Augusta
Finish
Dull Chrome
ADA Compliant
Yes
Lockset Performance Strength
Medium Duty
Mortise / Cylindrical
Cylindrical
Strike Type
Curved Lip
Lockset Finish
Dull Chrome
Strike Dim.
1-1/4 in x 4-7/8 in
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Handle Material
Heavy Gauge Steel
Ligature Resistant
No
Item
Door Lockset
Lockset Fire Rating
3 hr
Number of Keys
2
Grade
2
Type
Medium Duty
Strike
1-1/4 x 4-7/8"
Keying
Unkeyed
Material
Heavy Gauge Steel
Fire Rated
3 hr.
Function
Passage
Application
Commercial, Industrial
Visual Indicator Message
No Message
Lockset Type
Mechanical
Includes Core
Core Not Included
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Latch Bolt
Knob/Handle Material
Heavy Gauge Steel
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
Augusta
Locking/Unlocking Access - Outside
Not Lockable
Locking/Unlocking Access - Inside
Not Lockable
Performance Grade
1
ANSI Grade
2
Trim Plate Shape
Round
Lockset Function ANSI Code
F75
ANSI/BHMA Finish
Satin Chromium-Plated
Hand Orientation
Non-Handed

Description

Lever Lockset, Medium Duty, Commercial, Right Angle Style, Dull Chrome Finish, Function Passage, Grade 2, Material Heavy Gauge Steel, 1-1/4 x 4-7/8 In. Strike, Required Door Thickness 1-3/8 to 1-3/4 In., Standards ANSI 117.1 Specification, UL Listed, Package Quantity 1
