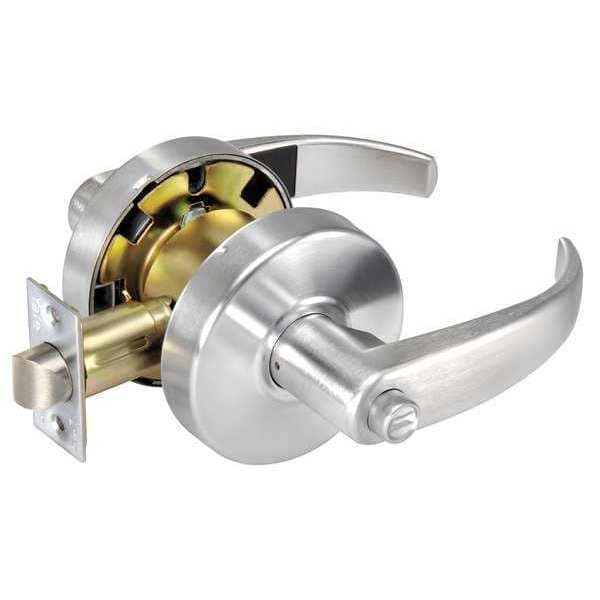

Assa Abloy Accentra Lever Lockset, Mechanical, Privacy, Grade 2 PB4602LN x 626 - main

Lever Lockset, Mechanical, Privacy, Grade 2

  • Mfr # PB4602LN x 626

  • Zoro # G0880083

product price: $99.89
/ea
Free Shipping & Returns

Key Features

Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
2
Finish
Dull Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PB4602LN x 626
Zoro #
G0880083
UPC #
094713923084
Country of Origin
Korea, Republic of

Dimensions

Required Door Thickness
1-3/8 in to 1-3/4 in
For Door Thickness
1-3/8 to 1-3/4"
Strike Plate Height
4 7/8 in
Door Thickness - Maximum
1 3/4 in
Strike Plate Width
1 1/4 in
Strike Plate Lip Length
1 1/4 in
Door Thickness - Minimum
1 3/8 in

Details

Item
Door Lockset
Lockset Function
Privacy
Location Type
Commercial
Electrical/Mechanical
Mechanical
Grade
2
Finish
Dull Chrome
Series
4600LN
Backset
2 3/4 in
Strike Dim.
2-1/4 in x 4-7/8 in
Includes
Free Wheeling Lever
Standards
ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203
Key Type
Not Keyed
Keyway Type
None
Lockset Handle Type
Lever
Mortise / Cylindrical
Cylindrical
ADA Compliant
Yes
For Use With
Metal Doors with Metal Frames
Lockset Fire Rating
3 hr
Lockset Performance Strength
Medium Duty
Mortise/Cylindrical
Cylindrical
Style
4600LN Pacific Beach
Strike Type
Curved Lip
Ligature Resistant
No
Handle Material
Heavy Gauge Steel
Lockset Grade
2
Lockset Finish
Dull Chrome
Keying
Unkeyed
Fire Rated
3 hr.
Number of Pins
6
Number of Keys
0
Visual Indicator Message
No Message
Strike
2-1/4 x 4-7/8"
Material
Heavy Gauge Steel
Function
Privacy
Lockset Type
Mechanical
Locking/Unlocking Access - Inside
Push Button
Ligature-Resistant
Not Ligature-Resistant
Lockset Style
Pacific Beach
Fire Rating
3 hr
Latch Bolt/Dead Bolt
Latch Bolt
ANSI Grade
2
Locking/Unlocking Access - Outside
Not Lockable
Includes Core
Core Included
Performance Grade
2
Application
Commercial
Trim Plate Shape
Round
Hand Orientation
Non-Handed
ANSI/BHMA Finish
Satin Chromium-Plated
Knob/Handle Material
Heavy Gauge Steel
Lockset Function ANSI Code
F76A

Description

Cylindrical Lockset, Commercial, 4600LN Series, Curved Style, Dull Chrome Finish, Function Privacy, Grade 2, Material Heavy Gauge Steel, For Door Thickness 1-3/8 to 1-3/4 In., Backset 2-3/4 In., Front Size Dimension Rose 3-3/8 In., 2-1/4 x 4-7/8 In. Strike, Standards ANSI/BHMA A156.2 Grade 2, ADA, UL and cUL, Fire Rated 3 hr.
