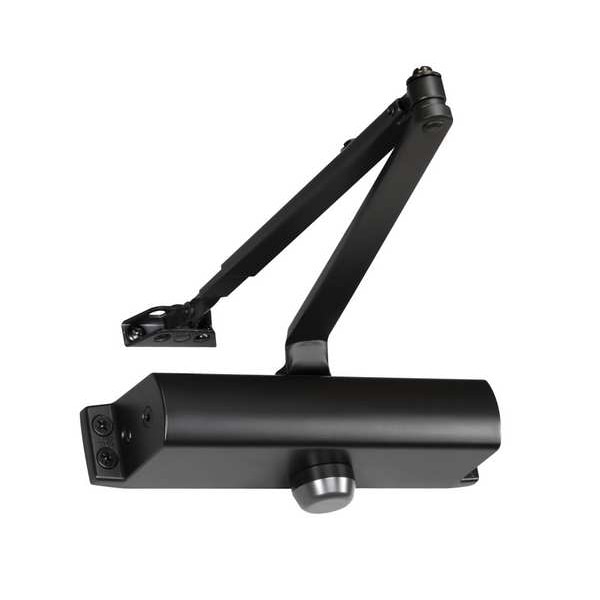

Assa Abloy Accentra Manual, Hydraulic, 1100, Door Closer, Interior, Black 1101 x BSP - main

Manual, Hydraulic, 1100, Door Closer, Interior, Black

  • Mfr # 1101 x BSP

  • Zoro # G702590585

product price: $110.03
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Tri-Mount
Closer Series
1100
Closer Type
Non-Hold Open
Color
Black
Finish
BSP
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1101 x BSP
Zoro #
G702590585
UPC #
-
Country of Origin
Slovakia

Dimensions

Housing Depth
1 3/4 in
Housing Height
2 5/8 in
Housing Length
9 3/4 in
Exterior Door Width
Up to 36 in
Spring Size
Adjustable 1 to 4
Interior Door Width
36 in
Exterior Door Width - Maximum
36 in
Length Between Mounting Holes
9 1/16 in
Height Between Mounting Holes
3/4 in
Spring Size - Maximum
4
Spring Size - Minimum
1
Interior Door Width - Maximum
36 in

Details

Item
Door Closer
Closer Mounting Style
Tri-Mount
Closer Series
1100
Closer Type
Non-Hold Open
Color
Black
Finish
BSP
Hand Orientation
Non-Handed
Interior/Exterior
Interior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Aluminum
Fire Rating - Door Hardware
3 hr
Max. Door Opening
Up to 180 Degrees
Projection from Wall
2 5/8 in
Arm Material
Aluminum
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed
Arm Type
Parallel, Regular
Ligature Resistant
No
Series
1100
Features
Adjustable Backcheck Valve, Adjustable Closing Speed Valve, Adjustable Latching Speed Valve, Auxiliary Door Stop Required, Full Rack and Pinion
Includes
Sleeve Nut (1-3/4 in)
Supports Touchless Operation
Yes
ADA Compliant
Yes
Mounting Hardware
Included
Supports Operation Type
Touchless Operation
Product Type
Door Closer
Spring Type
Adjustable
Ligature-Resistant
Not Ligature-Resistant
Closer Cycles
25,000,000
ANSI/BHMA Finish
Black Suede Powder Coated, Sprayed
Performance Grade
2
Operation Style
Manual
Interior/Exterior Use
Exterior
Includes Hardware
Hardware Included
Fire Rating
3 hr
Projection
2 5/8 in
Compatible Brand
ACCENTRA
UL Fire Rating
UL10C
Door Opening - Maximum
180 Degrees

Description

Door Closer, 1100 Closer Series, Interior, Manual, Hydraulic, Closer Performance Standard Duty, Closer Type Non-Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Tri-Mount, Standards ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed, ADA Compliant Yes, Finish BSP, Arm Material Aluminum, Arm Type Parallel, Regular, Color Black, Exterior Door Width Up to 36 in
