  6. Manual, Hydraulic, Yale 1100, Door Closer, Heavy Duty Interior and Exterior, Gray

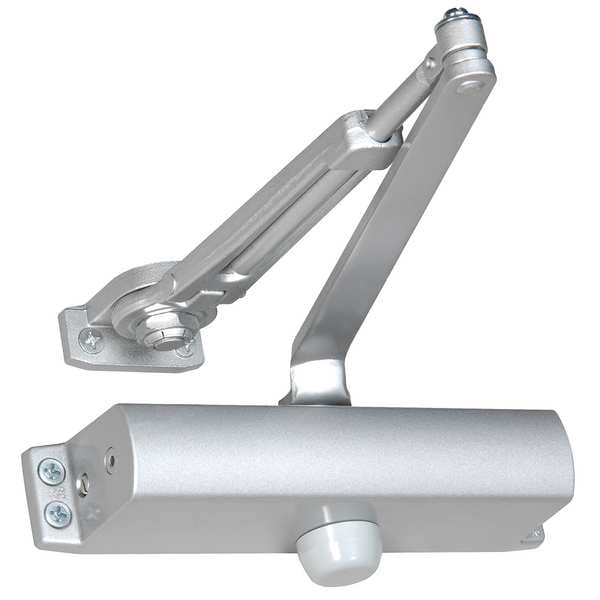

Assa Abloy Accentra Manual, Hydraulic, Yale 1100, Door Closer, Heavy Duty Interior and Exterior, Gray 1111BF x 689 - main

Manual, Hydraulic, Yale 1100, Door Closer, Heavy Duty Interior and Exterior, Gray

  • Mfr # 1111BF x 689

  • Zoro # G0154156

product price:  $121.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel, Regular, Top Jamb
Closer Performance
Heavy Duty
Closer Series
Yale 1100
Closer Type
Hold Open
Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1111BF x 689
Zoro #
G0154156
UPC #
049306852289
Country of Origin
Korea, Republic of

Dimensions

Housing Depth
2-5/8"
Housing Height
1-3/4"
Housing Length
9-3/4"
Exterior Door Width
36 in
Interior Door Width
48 in
Exterior Door Width - Maximum
36 in
Height Between Mounting Holes
3/4 in
Spring Size - Minimum
1
Length Between Mounting Holes
9 1/16 in
Spring Size - Maximum
4
Interior Door Width - Maximum
48 in

Details

Item
Door Closer
Closer Mounting Style
Parallel, Regular, Top Jamb
Closer Performance
Heavy Duty
Closer Series
Yale 1100
Closer Type
Hold Open
Color
Gray
Finish
Aluminum Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Aluminum
Max. Door Opening
180 Degrees
Includes
Adjustable Back Check Valve, Closing Speed Valve, Latching Speed Valve
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed
Arm Material
Aluminum
Arm Type
Parallel, Regular
Ligature Resistant
No
ADA Compliant
Yes
Projection from Wall
2 7/8 in
Category Type
Parallel Arm
Series
1100
Features
Adjustable Backcheck Valve, Adjustable Closing Speed Valve, Auxiliary Door Stop Required, Full Rack and Pinion
Door Handing
Non-Handed
Mounting Style
Regular, Parallel and Top Jamb, Barrier Free, ADA
Door Opening - Maximum
110 Degrees
Performance Grade
1
UL Fire Rating
UL10C
Spring Type
Adjustable
Interior/Exterior Use
Exterior
Projection
2 7/8 in
Compatible Brand
ACCENTRA
Product Type
Door Closer
Stop Type
Spring
Closer Cycles
25,000,000
Operation Style
Manual
ANSI/BHMA Finish
Aluminum Painted
Ligature-Resistant
Not Ligature-Resistant
Fire Rating
3 hr

Description

Door Closer, Yale 1111 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed, ADA Compliant Yes, Finish Aluminum Painted, Arm Material Aluminum, Arm Type Parallel, Regular, Color Gray, Exterior Door Width 36 in
