Athena Computer Power AP-MTFX30 300W Power Supply

  • Mfr # AP-MTFX30

  • Zoro # G703881491

product price:
$
78.99
/ea

Key Features

Receptacles
3 x 4-pin LP4 Peripheral Device, 3 x 15-pin Serial ATA, 1 x 20+4pin ATX Motherboard, 1 x 4-pin ATX12V Motherboard, 1 x 4-pin SP4 Floppy Drive
Output Power
300 W
Input Voltage Type
AC
MTBF
100000 Hour
Output Voltage
12 V DC, 5 V, -5 V DC, 3.3 V DC, -12 V DC, 5 V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AP-MTFX30
Zoro #
G703881491
UPC #
821524014300
Country of Origin
China

Dimensions

Depth
7 in
Width
3.4 in
Height
2.5 in

Details

Item
Power Supply
Receptacles
3 x 4-pin LP4 Peripheral Device, 3 x 15-pin Serial ATA, 1 x 20+4pin ATX Motherboard, 1 x 4-pin ATX12V Motherboard, 1 x 4-pin SP4 Floppy Drive
Output Power
300 W
Input Voltage Type
AC
MTBF
100000 Hour
Output Voltage
12 V DC, 5 V, -5 V DC, 3.3 V DC, -12 V DC, 5 V DC
Mounting
Internal
Number of +12V Rails
2
Plug/Connector
On/Off Switch
Number of Fans
1
Output Voltage Detail
12 V DC @ 500 mA, 5 V DC @ 500 mA, 5 V @ 2.5 A, 12 V DC @ 14 A, 5 V DC @ 13 A, 3.3 V DC @ 13 A
Output Current
500 mA, 14 A, 2.50 A, 13 A
Input Voltage
110 V AC, 220 V AC
Input Voltage Range
115 V AC - 230 V AC

Description

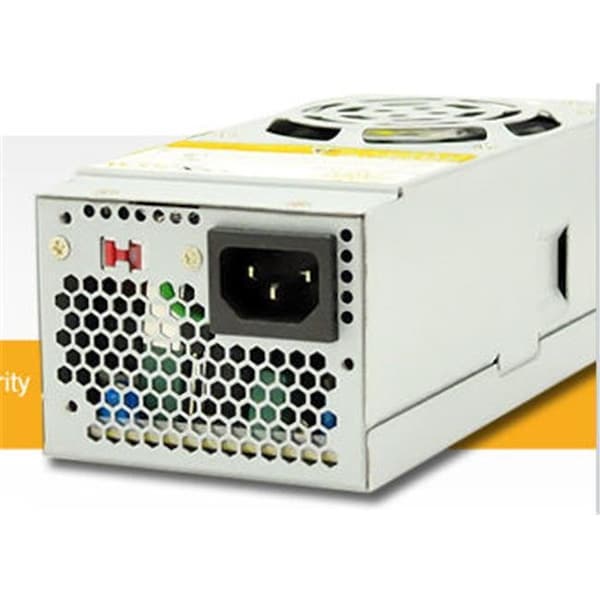

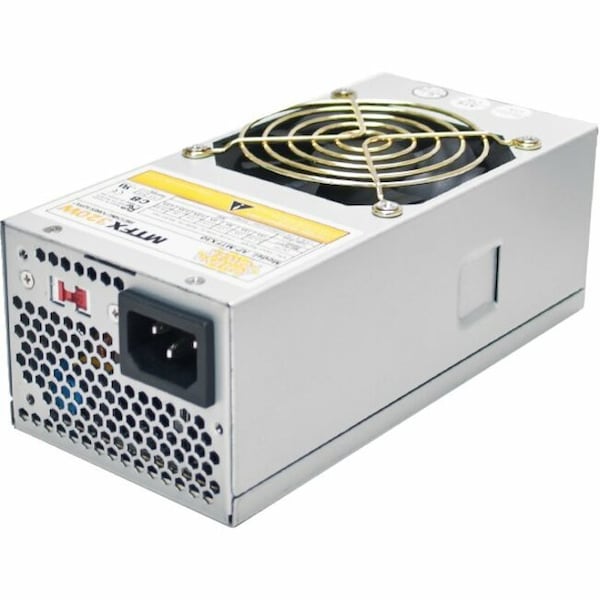

Introducing Athena Power's 300W TFX (AP-TFX30) power supply. Designed for the TFX form factor to provide compact flexibility for small computer cases. It is also compatible with many main brand systems. Output connectors includes 24(20+4)pin, P4-12V 4pin, SATA II 15pin, Molex 4pin, and FDD 4pin. Includes internal 40mm ball-bearing fan and thermal fan speed control for maximum heat and noise dissipation.
Specifications:
  • Output Power: 300 Watt.
  • Input Voltage: 115/230 Volts Ac.
  • Frequency: 60/50 Hz.
  • Temperature Range: Operating: 0 degrees C ~ +50 degrees C on Full Load; Storage and Shipping: -20 degrees C ~ +80 degrees C.
  • Humidity: 5 ~ 90% on Operating, 5 ~ 95% on Storage.
  • Dielectric Withstand: Primary Frame Ground 1800V AC for 1 Second.
  • MTBF: 100,000 Hours on Maximum Load at +25 degrees C.
  • Rise time: Less than 20ms.
  • Hold-up Time: 17ms Minimum at Nominal Input Voltage.
  • Dimensions: 3.88"W x 2.5"H x 7"D.
  • Voltage(Output): +5V, -5V, +12V1, +12V2, -12V, +3.3V, +5V-SB.
  • Current(Output): 13A, 0.5A, 9A, 9A, 0.8A, 13A, 2.5A.
  • Warranty: 1 Year.
    Conection:
  • ATX Connector (24 (20+4) Pin): P4-12V (4 Pin), SATA (15 Pin), Molex (4 Pin), Floppy (4 Pin).
