  11. Coiled Air Hose Assembly, 1/4" ID x 8 ft.
Shop All Coiled Air Hoses
Atp

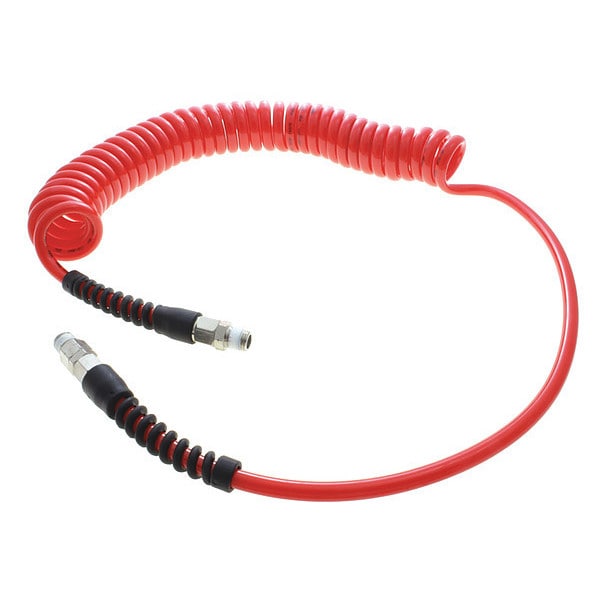

Coiled Air Hose Assembly, 1/4" ID x 8 ft.

original price: $34.75
5% off
new price: $32.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hose Inside Dia. 1/4 in
  • Hose Length 8 ft
  • Max. Working Pressure @ 70 F 140 psi
  • Fitting Size 1/4 in x 1/4 in
  • Fitting Type MNPT x MNPT
See all product information

Product Information

Dimensions

Hose Inside Dia. 1/4 in
Hose Length 8 ft
Fitting Size 1/4 in x 1/4 in
Hose Fitting A Size 1/4 in
Bend Radius 1/2"
Pigtail Length 20 in
Compressed Length 2 ft 7 in
Hose Outside Dia. 3/8 in
Hose Fitting B Size 1/4 in

Details

Item Coiled Air Hose Assembly
Max. Working Pressure @ 70 F 140 psi
Fitting Type MNPT x MNPT
Fitting Material Brass x Brass
Hose Color Red
Temp. Range -68 Degrees to 140 Degrees F
Hose Configuration Coupled Assembly
Hose Fitting B Type MNPT
Hose Tube Material Polyurethane
Hose Fittings Brass 1/4 in MNPT x Brass 1/4 in MNPT
Hose Reinforcement Material Not Reinforced
Safety Factor 3:1
Hose Strain Relief Yes
Hose Cover Material Polyurethane
Burst Pressure 420 psi
Hose Fitting A Material Brass
Hose Fitting B Material Brass
Hose Fitting A Type MNPT
Compatible Chemicals Air, Fresh Water
For Media Type Air, Water

Description

Coiled Air Hose Assembly, Hose Inside Dia. 1/4 in, Hose Outside Dia. 3/8 in, Hose Length 8 ft, Pigtail Length 20 in, Compressed Length 2 ft 7 in, Hose Color Red, Hose Tube Material Polyurethane, Hose Cover Material Polyurethane, Burst Pressure 420 psi, Max. Working Pressure @ 70 F 140 psi, Temp. Range -68 Degrees to 140 Degrees F, Hose Reinforcement Type Not Reinforced, Hose Reinforcement Material Not Reinforced, Safety Factor 3:1, Hose Fitting A Material Brass, Hose Fitting B Material Brass
