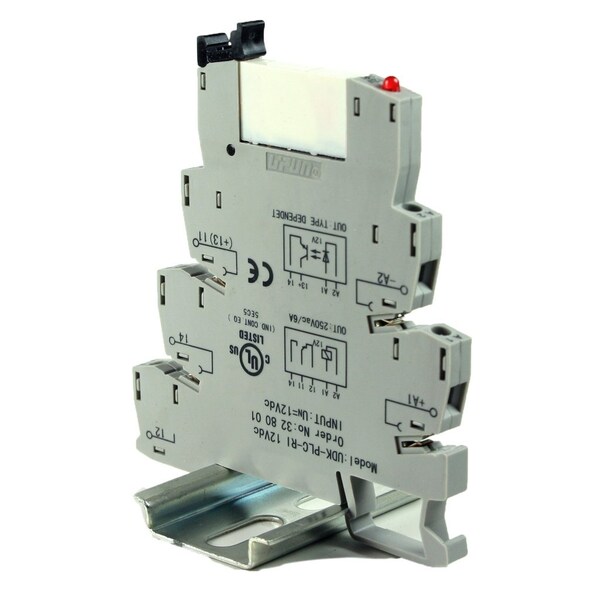

12V Terminal Block Relay, Interposing SPDT DIN Rail Relay 12V, 6A 250Vac (Discontinued)

ASI328001, Type ASIUDK-PLC-RI12VDC is a 12V relay terminal block with a pluggable SPDT relay that has a 12Vdc coil and a contact rating of 6A, 250Vac. This DIN rail relay 12V is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 6mm width. Features of this 12V interposing terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 12Vdc relay and a LED for visual indication. The terminal block relay base in combination with the 12Vdc pluggable relay are UL508 Listed and replacement relays are available. The push in jumpers can be used to save time when inserting a jumper from one 12Vdc relay terminal block to another. Since this industrial interposing relay terminal block mounts on the standard 35mm DIN rail installation with other DIN rail mounted components is quick and easy. To ensure wiring is correct each 12Vdc terminal block relay base has the wiring diagram printed on the side.

• 12V Relay
• 6mm Width
• LED Visual Indication
• Din Rail Mount
